Tube Settler vs Lamella Clarifier

Tube settlers and Lamella Clarifiers are often discussed together because both technologies are based on the same principle: improving gravity sedimentation by increasing the effective settling area within a compact footprint.

Both systems use inclined surfaces to shorten particle settling distance and operate without rotating equipment or pressurized air. However, the differences in their internal geometry, solids handling capability, maintenance requirements, and suitable applications are significant.

For engineers selecting clarification equipment, understanding these differences is important because the right choice depends not only on required settling efficiency, but also on wastewater characteristics and long-term operating conditions.

The Common Working Principle

Both tube settlers and Lamella Clarifiers are designed around the same engineering concept: reducing the distance suspended particles must travel before reaching a settling surface.

In a conventional settling tank, particles must move through the entire tank depth before reaching the bottom. Inclined surface technologies reduce this settling distance to the internal spacing of tubes or the distance between inclined plates, typically ranging from 25 to 120 mm depending on the design.

This greatly increases the effective settling area within the same vessel volume, allowing compact clarification systems to achieve much higher settling performance than traditional tanks.

Although the two technologies share the same basic principle, their different structures create important differences in hydraulic behavior and operating reliability.

Tube Settler Design and Performance

A tube settler consists of multiple small diameter tubes installed at an inclined angle, usually around 60 degrees, inside a settling tank or existing clarification structure.

Wastewater flows upward through the individual tubes, while suspended particles settle onto the internal tube surfaces and slide downward into the sludge collection area.

The small tube diameter creates a short settling path and a high surface area ratio, making tube settlers effective for applications with relatively clean water and low suspended solids concentrations.

However, the enclosed tube structure also creates limitations. The narrow internal passages are more vulnerable to fouling caused by biological growth, mineral scaling, and solids accumulation. Once individual tubes become blocked, the problem is difficult to identify from outside the equipment and can gradually reduce clarification performance.

Cleaning tube settlers can also be more complicated. Depending on the level of fouling, maintenance may require chemical cleaning, high-pressure flushing, or removal of the tube modules, which can increase downtime and labor requirements.

For wastewater with high suspended solids loading, tube settlers may experience greater operational challenges because solids can accumulate inside the narrow channels faster than they can discharge naturally.

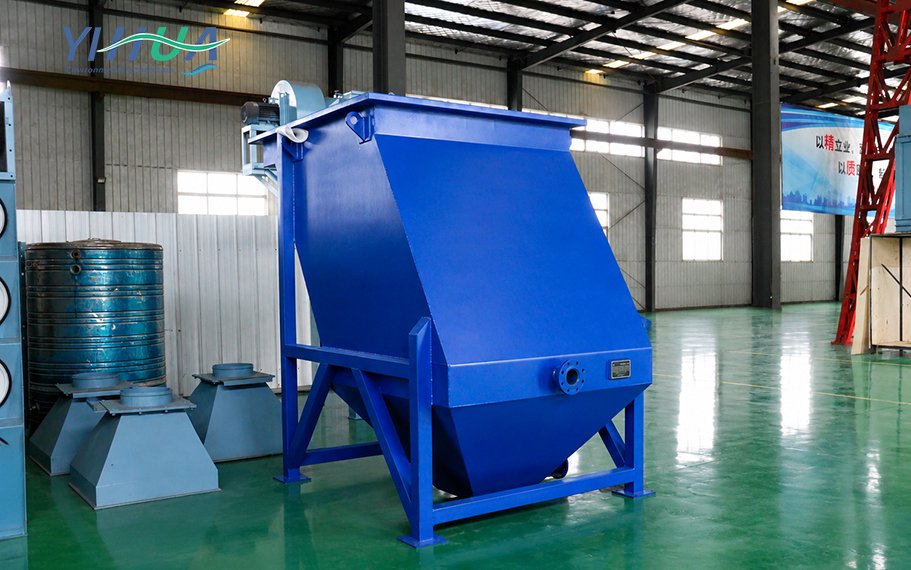

Lamella Clarifier Design and Performance

A Lamella Clarifier uses multiple inclined plates arranged in parallel, creating open flow channels between adjacent plate surfaces. The plates are typically installed at angles between 45 and 60 degrees, with spacing selected according to wastewater characteristics.

Unlike tube settlers, Lamella systems use open plate channels. Settled solids slide directly along the inclined surfaces into the sludge hopper, providing a more open and accessible path for solids removal.

This design provides several advantages in industrial wastewater applications. The wider channels reduce the risk of blockage, making the system more tolerant of higher suspended solids concentrations. Mineral particles, sludge flocs, and scale deposits can move downward more reliably without becoming trapped inside narrow passages.

Maintenance is also simpler. Plate surfaces can be visually inspected, and cleaning can usually be performed through pressure washing or chemical cleaning without removing the complete plate assembly.

Because of its stronger solids handling capability, the Lamella Clarifier is widely used in industries such as mining, metal processing, chemical manufacturing, and other applications where wastewater conditions are more variable.

Choosing Between Tube Settler and Lamella Clarifier

Tube settlers are generally more suitable for applications with relatively low suspended solids concentrations, stable wastewater characteristics, and predictable particle settling behavior. They are commonly found in municipal water treatment and polishing applications where fouling risks are limited and operating conditions remain consistent.

A Lamella Clarifier is usually the better choice for industrial wastewater applications where suspended solids loading is higher, wastewater characteristics fluctuate, or long-term maintenance reliability is a priority.

Industries such as mining, metal finishing, chemical production, and manufacturing often deal with wastewater containing mineral solids, chemical precipitates, biological residues, or scaling compounds. Under these conditions, the open plate structure of a Lamella system provides better solids discharge, easier inspection, and more reliable long-term operation.

For projects requiring a prefabricated clarification unit rather than an insert installed inside an existing tank, the Lamella Clarifier also provides greater flexibility because it can be supplied as a complete standalone treatment unit.

Why Lamella Clarifiers Are Often Preferred for Industrial Applications

The main difference between the two technologies is not settling efficiency alone, but how they handle real operating conditions.

Tube settlers can achieve excellent clarification performance under clean and stable conditions, but their enclosed channels make them more sensitive to fouling and blockage.

The Lamella Clarifier, with its open inclined plate design, provides better tolerance to high TSS loading, easier maintenance access, and more predictable solids removal. These characteristics make it particularly suitable for industrial wastewater applications where reliability and continuous operation are critical.

In many industrial treatment plants, the Lamella Clarifier is selected not because tube settlers cannot separate solids, but because industrial wastewater requires a more robust solution that can handle changing conditions over years of operation.

Conclusion

Tube settlers and Lamella Clarifiers are based on the same enhanced gravity sedimentation principle, but their different structures lead to different performance characteristics.

Tube settlers provide efficient clarification for low solids applications where operating conditions are stable and fouling risks are limited. The Lamella Clarifier offers a more robust solution for industrial wastewater treatment where higher solids loading, variable wastewater conditions, and maintenance accessibility are important considerations.

For most industrial applications involving mining wastewater, metal processing effluent, chemical wastewater, and manufacturing processes, the Lamella Clarifier provides a more reliable and practical approach to long-term solid-liquid separation.
