Inclined Plate Clarifier

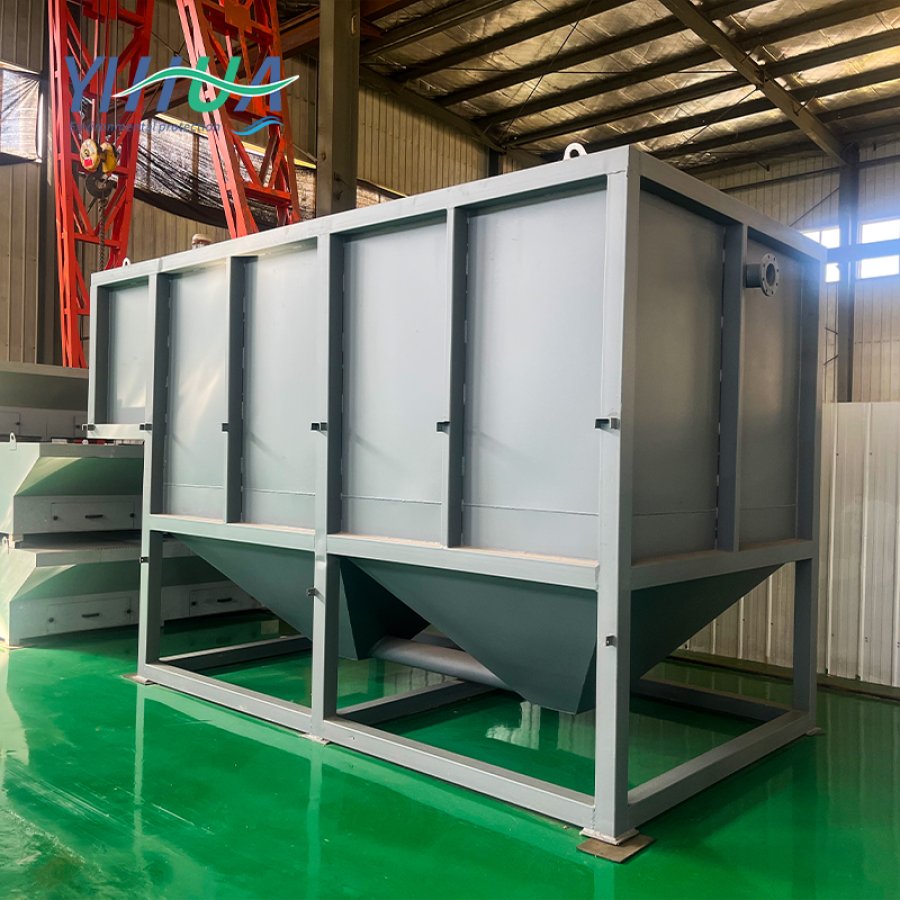

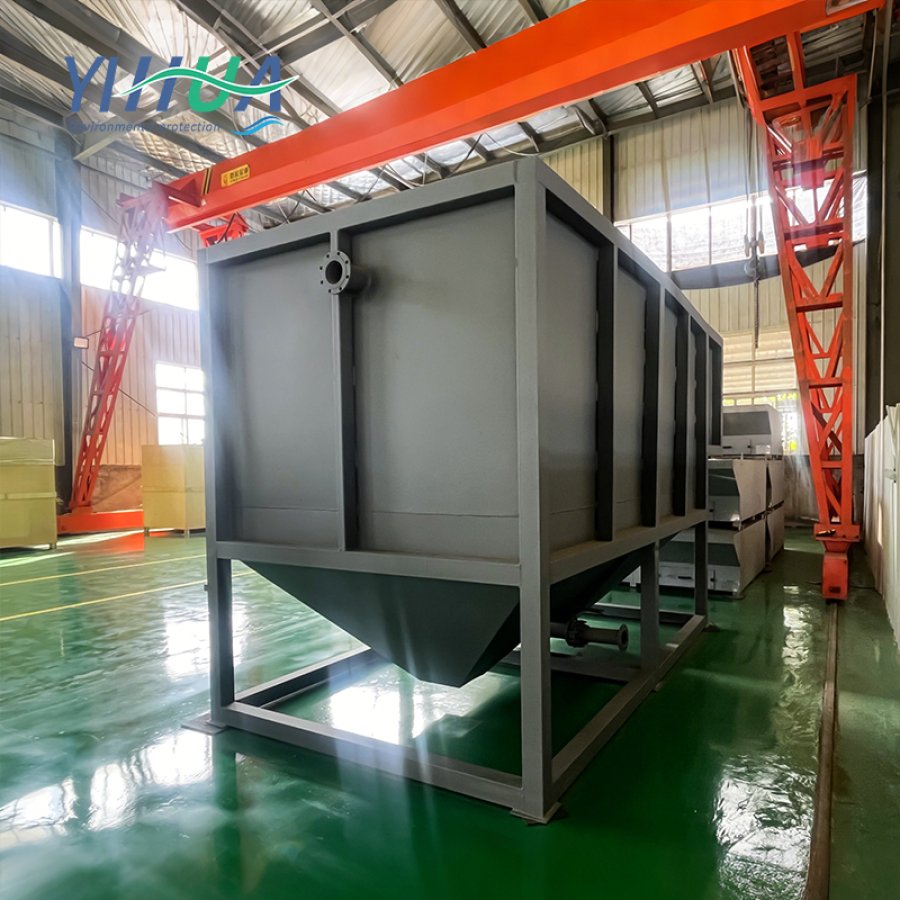

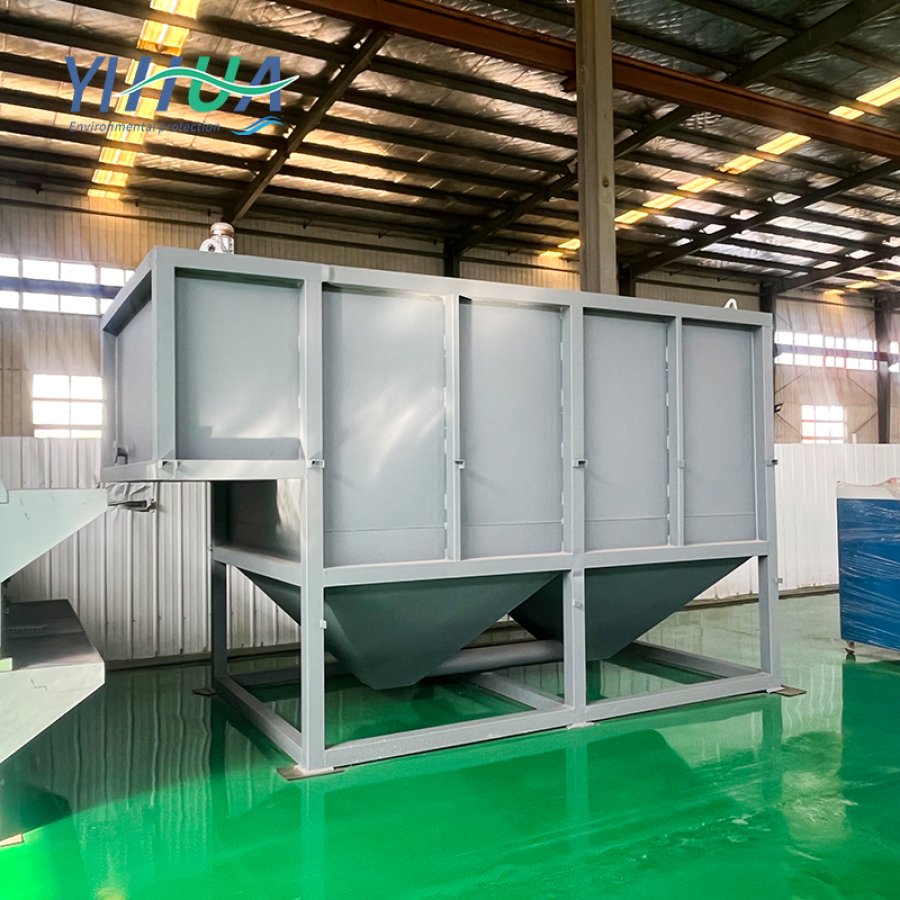

Inclined Plate Clarifier is a compact and efficient solid-liquid separation solution designed for industrial wastewater treatment, municipal sewage treatment, and a wide range of water clarification applications. By incorporating a series of inclined plates into the clarification zone, the equipment provides a large effective settling area within a relatively small footprint, making it suitable for projects where treatment efficiency, space utilization, and reliable operation are important considerations.

Add to Cart

inquiry

Product Details
Product Advantages
Application Scenarios
Specifications

Product description

Our Inclined Plate Clarifier can be customized according to wastewater characteristics, treatment capacity, site conditions, and project requirements. The equipment is available with CE and ISO certifications, and we provide professional technical support throughout the project, including equipment selection, installation guidance, commissioning assistance, operation support, and after-sales service. You do not need to worry about installation or operation—we provide the technical support needed to help you put the equipment into reliable service.

Customized Service

We provide customized Inclined Plate Clarifier solutions based on wastewater characteristics, treatment capacity, site conditions, and project requirements.

Our technical team can assist with equipment selection, configuration, installation, commissioning, and operation guidance. Customized options may include equipment dimensions, materials, inlet and outlet arrangements, sludge handling, and integration with existing treatment systems.

Whether for a new wastewater treatment project or an existing system upgrade, we can provide a suitable solution based on your specific requirements.

CE and ISO Certified

Our Inclined Plate Clarifier is available with CE and ISO certifications, meeting the quality and documentation requirements of international wastewater treatment projects.

We maintain strict quality control throughout manufacturing and can provide relevant certification and technical documents according to project requirements.

Installation & Technical Support

We provide professional installation guidance, commissioning support, operation assistance, and after-sales technical service.

You do not need to worry about installation or operation. Our technical team will provide the necessary guidance and support to help ensure smooth installation, commissioning, and reliable operation.

Key Product Advantages:

1. Efficient Clarification in a Compact Footprint

The Inclined Plate Clarifier is designed to provide efficient suspended solids separation while making better use of available installation space.

The inclined plate arrangement increases the effective settling area within the clarification zone and reduces the settling distance of suspended particles. This allows the equipment to achieve efficient clarification performance without requiring the large footprint typically associated with conventional sedimentation tanks.

For wastewater treatment facilities with limited available space, the compact configuration provides an effective way to improve clarification capacity without requiring a major expansion of the treatment area.

2. Improved Space Utilization for Treatment Plant Upgrades

Space limitations are a common challenge when upgrading existing wastewater treatment facilities. Expanding a conventional sedimentation system may require additional civil construction, larger tanks, or significant changes to the existing plant layout.

An Inclined Plate Clarifier provides an alternative solution by maximizing the effective settling area within a compact structure.

It can be considered for:

· Existing wastewater treatment plant upgrades

· Treatment capacity expansion projects

· Industrial facilities with limited available space

· Compact packaged wastewater treatment systems

· New treatment plants where footprint needs to be minimized

The equipment can be designed around the available installation area to help customers make better use of existing plant space.

3. Stable Operation and Practical Maintenance

The Inclined Plate Clarifier is designed with a practical structure to support reliable long-term operation.

The clarification zone contains relatively few moving components, which helps reduce mechanical complexity and potential maintenance requirements. The inclined plate arrangement also supports efficient solids settling and sludge collection under appropriate operating conditions.

Depending on the project configuration, the equipment can be designed with accessible components and practical maintenance arrangements to facilitate inspection, cleaning, and routine servicing.

Our technical team can also provide operation and maintenance recommendations based on the actual application and equipment configuration.

4. Flexible Configuration for Different Wastewater Conditions

There is no single equipment configuration suitable for every wastewater treatment project. Wastewater characteristics, flow rate, suspended solids concentration, available space, and downstream treatment requirements can all affect equipment selection.

For this reason, our Inclined Plate Clarifier can be customized according to the specific requirements of each project.

Available configuration options may include:

· Different inclined plate materials

· Customized plate spacing

· Customized plate dimensions and arrangement

· Carbon steel, stainless steel, FRP, or other suitable structural materials

· Customized inlet and outlet arrangements

· Sludge collection and discharge configurations

· Integration with coagulation and flocculation systems

· Customized equipment dimensions according to site conditions

Our engineering team can evaluate the customer's wastewater characteristics and treatment requirements before recommending a suitable equipment configuration.

Primary Industrial Application Scenarios:

The Inclined Plate Clarifier can be used in a wide range of wastewater and water treatment applications where suspended solids separation and clarification are required.

Municipal Wastewater Treatment

The equipment can be used for primary clarification, suspended solids removal, treatment plant upgrades, and capacity expansion projects.

For existing municipal wastewater treatment facilities, its compact design can be considered when additional clarification capacity is required but available land is limited.

Mining and Mineral Processing

Mining and mineral processing operations often generate wastewater containing significant amounts of suspended solids and mineral particles.

The Inclined Plate Clarifier can be used for process water clarification, mineral washing wastewater, tailings water treatment, and water recycling applications.

Steel and Metallurgical Industry

Industrial processes in the steel and metallurgical sectors can generate wastewater containing suspended solids, process residues, and other contaminants.

The equipment can be applied to steel rolling wastewater treatment, industrial water clarification, circulating cooling water treatment, and related solid-liquid separation processes.

Petrochemical Industry

The Inclined Plate Clarifier can be incorporated into wastewater pretreatment and clarification systems in petrochemical facilities.

Depending on the wastewater characteristics and overall treatment process, it can be used for suspended solids separation, pretreatment, and clarification before subsequent treatment stages.

Food and Beverage Industry

Food processing and beverage production can generate wastewater containing suspended solids and organic matter.

The equipment can be used in suitable pretreatment and clarification processes for food processing wastewater, brewery wastewater, starch wastewater, and other industrial wastewater applications.

Pulp and Paper Industry

The equipment can be used for white water clarification, fiber and suspended solids removal, process water recovery, and wastewater treatment in pulp and paper production facilities.

Its compact configuration is particularly useful when treatment capacity needs to be increased without significantly increasing the footprint of the existing treatment system.

Power Industry

The Inclined Plate Clarifier can be applied to industrial wastewater clarification, desulfurization wastewater treatment, ash water treatment, and other water treatment processes within power generation facilities.

Specifications

Model	Capacity (m³/h)	Dimensions(m)			List of nozzles (dn)
Model	Capacity (m³/h)	L	W	H	Water inlet	Water outlet	Mud outlet
YHLC1-001	1	1.6	0.8	2	25	50	50
YHLC1-003	3	1.6	1.1	2	50	50	50
YHLC1-005	5	2.2	1.4	2.2	80	80	65
YHLC1-010	10	3.2	1.8	3.5	80	80	80
YHLC1-020	20	3.2	2.2	3.5	100	100	80
YHLC1-030	30	4.2	2.2	4.1	150	150	80
YHLC1-040	40	5.3	2.2	3.5	150	150	80*2
YHLC1-050	50	6.3	2.2	3.9	150	200	80*2
YHLC1-060	60	7.3	2.2	3.5	200	200	80*3
YHLC1-070	70	8.8	2.2	3.9	200	200	80*3
YHLC1-080	80	9.3	2.2	3.5	200	200	80*4
YHLC1-090	90	10.2	2.2	4.1	200	250	80*3
YHLC1-100	100	11.3	2.2	3.9	250	250	80*4
YHLC1-120	120	9.3	3.2	3.5	250	250	80*4
YHLC1-150	150	11.3	3.2	3.9	250	250	80*4
