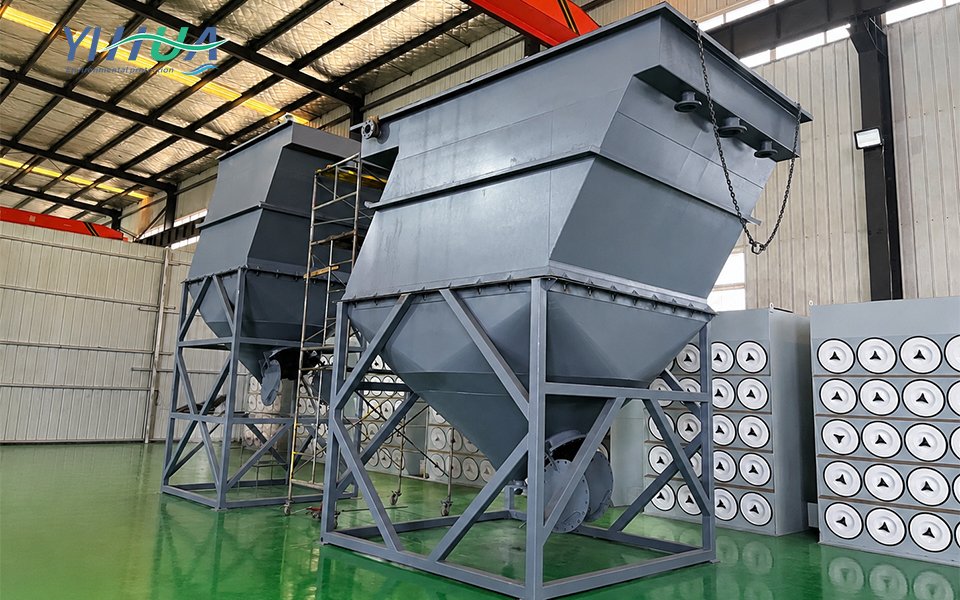

Lamella Clarifier Application in Wastewater Treatment

The Lamella Clarifier has become a widely used solid-liquid separation technology in industrial wastewater treatment due to its ability to achieve high-efficiency gravity clarification within a compact footprint.

Compared with conventional settling tanks, the Lamella Clarifier uses inclined plate geometry to increase effective settling area, allowing a smaller vessel to achieve similar or higher clarification performance. Its passive operating principle, low energy demand, and flexible installation options make it suitable for a wide range of industrial and municipal wastewater applications.

However, the best performance is achieved when the technology is matched with the right wastewater characteristics. Understanding where Lamella Clarifiers provide the greatest value helps engineers select the appropriate treatment configuration.

Mining and Quarrying Wastewater Treatment

Mining and quarrying operations generate wastewater from pit dewatering, ore washing, tailings runoff, and dust suppression processes. These streams often contain high concentrations of suspended solids, with TSS levels ranging from several hundred to more than 10,000 mg/L.

The main pollutants are typically dense inorganic particles, including mineral fines, clay, silica, and metal oxides. Because these solids settle naturally under gravity, they are highly suitable for treatment with a Lamella Clarifier.

In mining applications, the Lamella Clarifier is commonly selected as a primary clarification unit because it combines efficient solids removal with a compact structure. This is especially valuable for remote mining sites where land preparation, power supply, and maintenance access can be challenging.

With proper hydraulic design and upstream solids management, a Lamella Clarifier can reduce mining wastewater TSS levels to below 50 mg/L in many applications. For extremely high solids streams, such as active pit dewatering or tailings overflow with TSS above 2,000 mg/L, upstream pre-treatment such as hydrocyclone separation or settling systems may be required to reduce the solids load before clarification.

Metal Processing and Electroplating Wastewater Treatment

Metal finishing and electroplating industries produce wastewater containing dissolved metals such as chromium, nickel, zinc, copper, and lead. Before discharge, these dissolved metals are typically converted into insoluble hydroxide precipitates through pH adjustment and chemical coagulation.

The resulting metal hydroxide sludge is an ideal feed for the Lamella Clarifier because these particles are dense, stable, and highly settleable after proper chemical conditioning.

In this application, the Lamella Clarifier is often used as the main clarification stage after chemical precipitation. The inclined plate design allows efficient separation of metal-bearing solids while producing concentrated sludge at the bottom hopper, which can then be sent to filter pressing and further disposal.

Compared with conventional sedimentation tanks, the compact design of the Lamella Clarifier reduces the footprint required for metal wastewater treatment systems while maintaining reliable separation performance.

Food and Beverage Wastewater Treatment

Food processing wastewater requires a different treatment approach because the dominant pollutants are often fats, oils, grease, and lightweight organic solids.

For these applications, a DAF System is typically used as the primary treatment stage because flotation is more effective for removing pollutants that are lighter than water.

The Lamella Clarifier is commonly applied after biological treatment as a secondary clarification unit. Following treatment in an MBBR System, detached biofilm solids and biological flocs must be separated from the treated water before discharge.

In this role, the Lamella Clarifier provides efficient separation of biological solids within a compact footprint, making it particularly suitable for food production facilities where available space is often limited.

Chemical Manufacturing and Process Water Treatment

Chemical manufacturing wastewater can contain inorganic reaction products, neutralization sludge, mineral particles, and process-related solids. Because these wastewater streams vary significantly depending on production processes, the Lamella Clarifier is usually integrated after chemical pre-treatment.

Through processes such as pH adjustment, precipitation, coagulation, and flocculation, dissolved compounds are converted into settleable particles before entering the clarification stage.

The Lamella Clarifier is also used in industrial process water applications, including cooling tower blowdown treatment and equipment protection systems. It can remove calcium scale particles, corrosion products, and coagulated solids that may otherwise cause fouling in downstream equipment such as heat exchangers and membrane systems.

Municipal and Drinking Water Treatment Applications

In municipal and drinking water treatment, Lamella Clarifiers are commonly used as high-rate sedimentation units between coagulation-flocculation and filtration processes.

Their main advantage is the ability to provide high clarification capacity within a smaller footprint compared with traditional sedimentation basins.

For existing water treatment plants requiring capacity expansion, Lamella technology offers a practical upgrade option without the need for large additional civil structures.

Secondary Clarification After MBBR Biological Treatment

One of the increasingly common applications of the Lamella Clarifier is as a secondary clarifier after an MBBR System.

Unlike conventional activated sludge systems, where treatment performance depends heavily on biological sludge settling characteristics, MBBR systems maintain active biomass on carrier surfaces. This allows the biological process to remain stable while using a compact downstream clarification unit for solids separation.

The combination of MBBR biological treatment and Lamella clarification provides an efficient treatment configuration for industrial wastewater plants requiring high performance within limited space.

Compared with traditional activated sludge systems using large secondary clarifiers, this integrated approach can significantly reduce the overall treatment footprint while maintaining stable effluent quality.

Conclusion

The Lamella Clarifier provides reliable solid-liquid separation across a wide range of wastewater treatment applications, including mining, metal processing, chemical manufacturing, food processing secondary clarification, drinking water treatment, and biological wastewater systems.

Its compact design, passive operation, and efficient solids removal make it especially valuable for industrial projects where space limitations, installation speed, and long-term reliability are important considerations.

When combined with appropriate upstream processes such as chemical precipitation, DAF System pre-treatment, or MBBR System biological treatment, the Lamella Clarifier becomes a key component in modern industrial wastewater treatment systems designed for stable performance and regulatory compliance.
