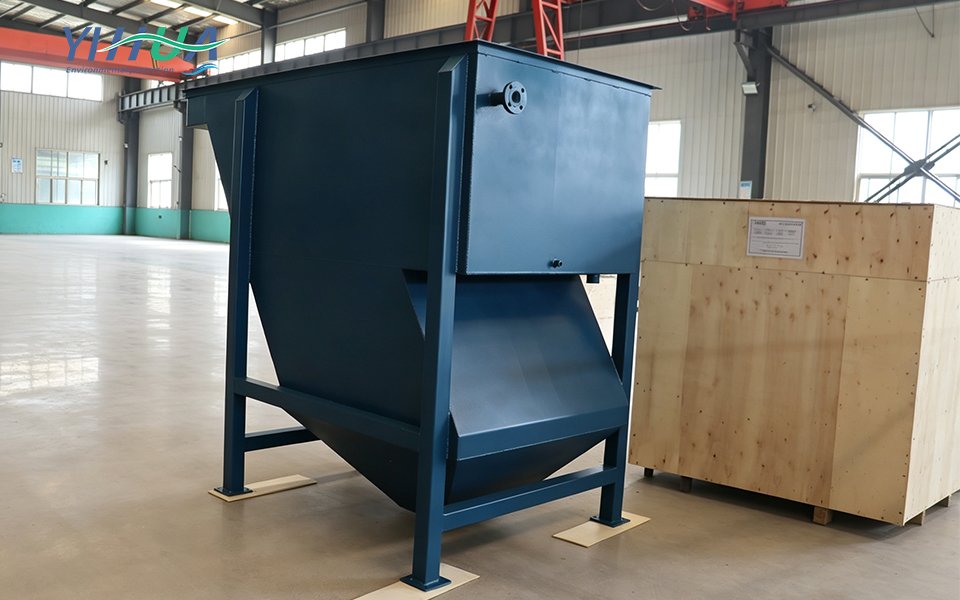

What Is a Lamella Clarifier?

A Lamella Clarifier is a solid-liquid separation device widely used in industrial and municipal wastewater treatment to remove suspended solids through enhanced gravity sedimentation. It is also commonly referred to as an inclined plate clarifier, tube settler, or plate pack clarifier.

Regardless of the terminology used, the operating principle remains the same. Multiple inclined plates are installed inside a compact vessel to increase the effective settling area, allowing the unit to achieve clarification performance comparable to much larger conventional settling tanks while occupying significantly less space.

Because of its compact design, simple operation, and low energy requirements, the Lamella Clarifier has become a widely adopted solution for industrial wastewater applications where space, installation time, and operating reliability are important considerations.

How a Lamella Clarifier Works

The Lamella Clarifier operates through gravity separation without requiring compressed air, rotating equipment, or complex mechanical systems within the clarification zone.

Wastewater enters the vessel and flows upward through narrow channels formed between adjacent inclined plates. These plates are typically installed at an angle of 45 to 60 degrees from horizontal.

As the wastewater moves through the plate pack, suspended solids settle onto the inclined plate surfaces. Compared with a conventional settling tank, where particles must travel through the full depth of the tank before reaching the bottom, the Lamella design significantly reduces the settling distance to the space between adjacent plates, which is typically around 50 to 80 mm.

After settling onto the plate surfaces, solids slide downward under gravity into the sludge collection hopper, while clarified water continues upward and exits through the overflow weir.

The main performance advantage of the Lamella Clarifier comes from its ability to multiply effective settling area. Instead of relying only on the horizontal tank footprint, the system uses the combined projected area of multiple inclined plates. This allows a compact Lamella unit to provide settling capacity comparable to a much larger conventional clarifier.

Main Components of a Lamella Clarifier

A typical Lamella Clarifier consists of several key components designed to work together for stable solid-liquid separation.

The vessel provides the structural enclosure for the clarification process. Depending on wastewater chemistry and operating conditions, the tank can be manufactured from stainless steel, coated carbon steel, or corrosion-resistant composite materials.

The plate pack is the core separation component. It consists of multiple inclined plates arranged in parallel with controlled spacing and angle. Plate material selection depends on application requirements. Polypropylene plates are commonly used for standard temperature conditions, while higher temperature or chemically aggressive wastewater may require specialized polymers, stainless steel, or reinforced composite materials.

The inlet distribution system plays an important role in performance. Uniform wastewater distribution across the plate pack ensures that the available settling area is fully utilized. Poor inlet flow distribution can create localized high velocity zones, reducing separation efficiency and causing solids carryover.

At the bottom of the unit, the sludge hopper collects settled solids as they slide down from the inclined plates. The concentrated sludge is then discharged for further treatment or dewatering.

The overflow weir at the top of the vessel collects clarified water and maintains stable hydraulic conditions across the outlet area.

Industrial Applications of Lamella Clarifiers

The Lamella Clarifier is widely used in industries where wastewater contains suspended solids that are denser than water and can be removed through gravity separation.

In metal processing and electroplating applications, Lamella systems are commonly used to remove heavy metal hydroxide precipitates generated during chemical treatment and pH adjustment processes.

In mining and quarrying operations, the technology is suitable for treating pit dewatering water, ore washing wastewater, and crusher dust suppression streams containing high concentrations of mineral particles.

In water treatment applications, Lamella Clarifiers are used to remove coagulated turbidity before filtration processes. Chemical manufacturing facilities also use them for separating inorganic reaction solids and process precipitates from wastewater streams.

In power generation facilities, Lamella Clarifiers can be applied to cooling tower blowdown and other process wastewater containing suspended solids.

The technology is also commonly integrated after an MBBR System Moving Bed Biofilm Reactor as a secondary clarification stage, where it separates detached biofilm solids from treated water before discharge or reuse.

Why Lamella Clarifiers Are More Efficient Than Conventional Settling Tanks

Compared with traditional round or rectangular settling tanks, the Lamella Clarifier provides several engineering advantages.

The most significant advantage is footprint reduction. By using inclined plate geometry, the system can achieve similar settling performance within a much smaller installation area, reducing the need for large concrete structures and extensive civil construction.

The prefabricated design also improves project execution speed. Unlike conventional settling tanks that require significant excavation, concrete construction, and curing time, a Lamella unit can typically be manufactured, transported, and installed much faster.

Operational simplicity is another important benefit. Because clarification relies mainly on gravity, energy consumption is limited primarily to sludge discharge equipment and basic instrumentation. The absence of rotating scraper mechanisms inside the clarification zone reduces maintenance requirements and minimizes potential mechanical failure points.

For industrial facilities with limited space, retrofit requirements, or the need for rapid deployment, the Lamella Clarifier provides a practical alternative to conventional sedimentation technologies.

Conclusion

A Lamella Clarifier is an engineered solid-liquid separation system that uses inclined plate technology to increase effective settling area within a compact footprint.

By reducing settling distance, improving hydraulic efficiency, and eliminating complex mechanical components, it provides reliable clarification performance with lower construction requirements and reduced operational complexity compared with traditional settling tanks.

For industrial wastewater applications involving dense settleable solids, limited installation space, retrofit projects, or low-energy operation requirements, the Lamella Clarifier remains one of the most effective and practical clarification solutions available.
