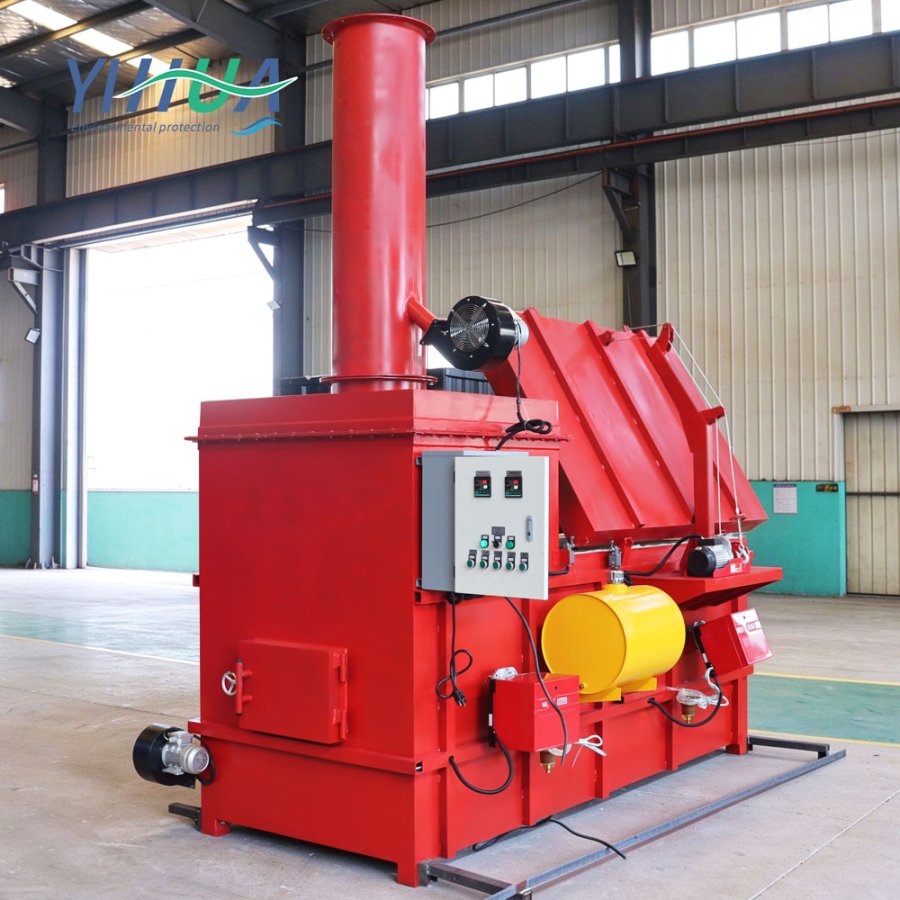

Equipped with a dual-chamber combustion system and high-quality Riello burners, the top loading incinerator supports efficient combustion and secondary treatment of combustion gases. It can operate on either diesel or LPG, providing flexible fuel options according to local fuel availability and operating requirements.

Unlike incinerators equipped with a push-pull loading bed, this model features an open-top loading design that accommodates bulky waste and simplifies material handling. Its dimensions, burner configuration, and construction materials can all be customized to meet different waste treatment capacities and site conditions.

With its robust structure, high-temperature-resistant lining, and flexible configuration, the Top Loading Incinerator is an ideal choice for farms, industrial facilities, waste management companies, and other operations requiring a practical solution for diverse waste streams.

How Does a Top Loading Incinerator Work?

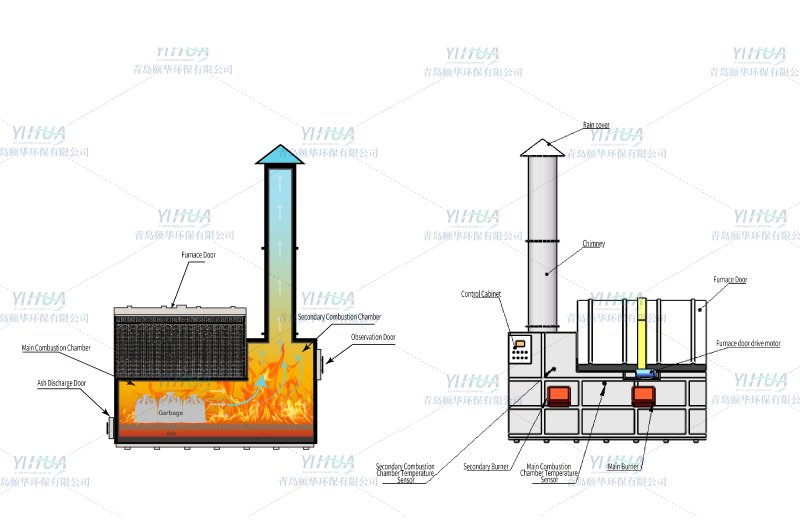

The Top Loading Incinerator uses a two-stage combustion process to treat waste and improve the combustion of gases generated during incineration.

1. Top Loading and Waste Feeding

The top-loading door is opened to provide convenient access to the main combustion chamber. Waste can be loaded manually or discharged directly into the chamber using a forklift, depending on the waste type and handling requirements. This design reduces manual handling and makes it easier to process large, heavy, or loose materials.

2. Primary Combustion

After loading, the waste is ignited in the primary combustion chamber. A Riello burner supplies the heat required to initiate and maintain combustion. Organic waste materials are thermally decomposed and oxidized under controlled operating conditions, reducing their volume and converting combustible components into combustion gases and solid residues.

3. Secondary Combustion

Combustion gases from the primary chamber enter the secondary combustion chamber, where additional heat and controlled combustion conditions promote the further oxidation of combustible gases. This second stage helps improve combustion completeness and reduce unburned combustible components in the exhaust stream.

4. Exhaust Gas Treatment and Discharge

After secondary combustion, the exhaust gas can be directed through an appropriately configured exhaust gas treatment system before discharge. The required treatment equipment should be selected according to the waste composition, local environmental regulations, and applicable emission limits.

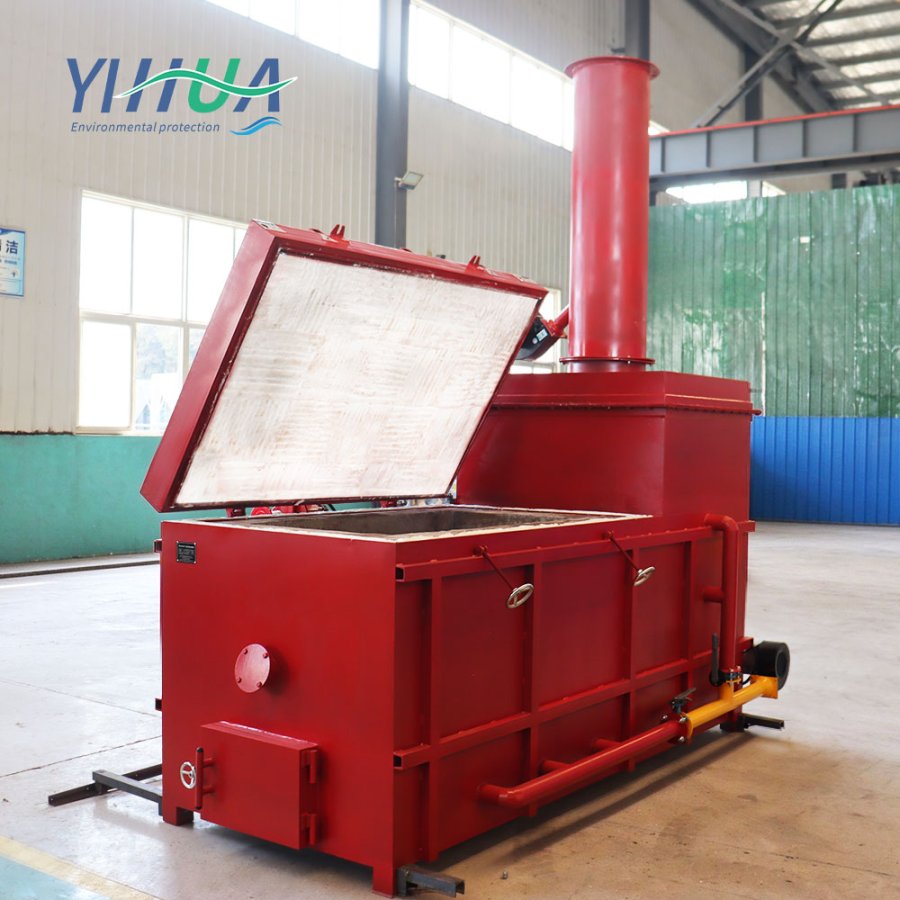

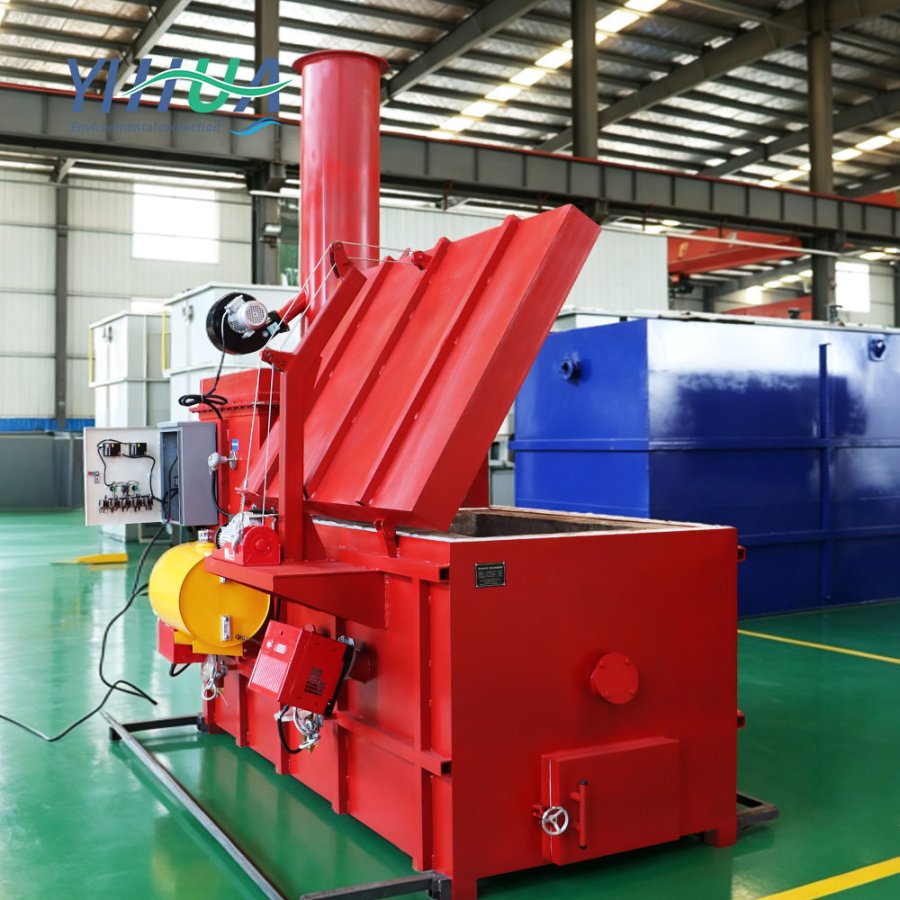

1. Top-Opening Door with a Large Combustion Chamber

The large top-opening design provides convenient access for loading bulky and heavy waste. It is particularly suitable for waste materials that are difficult to feed through conventional front-loading doors.

2. Forklift-Compatible Waste Loading

The open-top structure allows compatible waste containers or loads to be tipped directly into the combustion chamber using a forklift. This reduces labor requirements, simplifies waste handling, and improves loading efficiency for bulk waste operations. Actual loading procedures depend on the forklift configuration, waste characteristics, and site safety requirements.

3. Dual-Chamber Combustion System

The primary and secondary combustion chambers work together to support waste combustion and further oxidation of combustible gases. This configuration is suitable for a wide range of waste incineration applications when properly designed and operated.

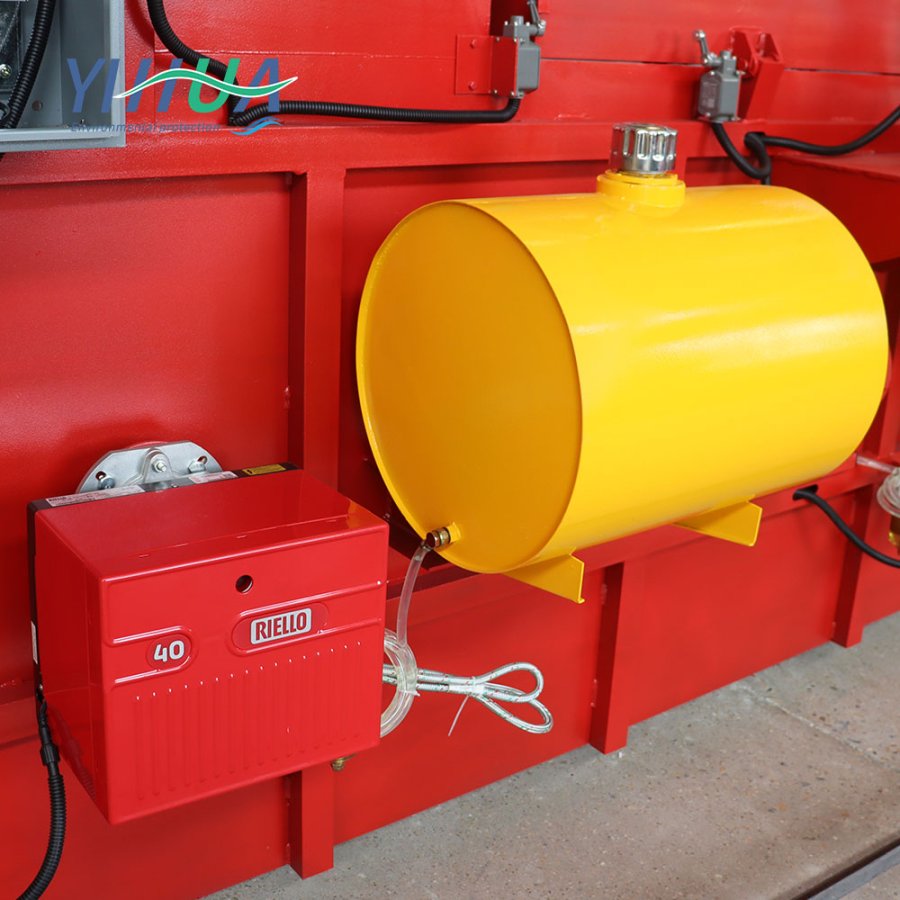

4. High-Quality Riello Burners

The incinerator is equipped with Riello burners to provide the heat required for ignition, temperature maintenance, and combustion support. Burner quantity and configuration can be customized according to the equipment size, waste characteristics, and required processing capacity.

5. Flexible Diesel or LPG Fuel Options

The system can be configured to use diesel or liquefied petroleum gas (LPG). This flexibility allows customers to select a suitable fuel according to local availability, operating costs, and project requirements.

6. High-Alumina Refractory Lining and Ceramic Fiber Insulation

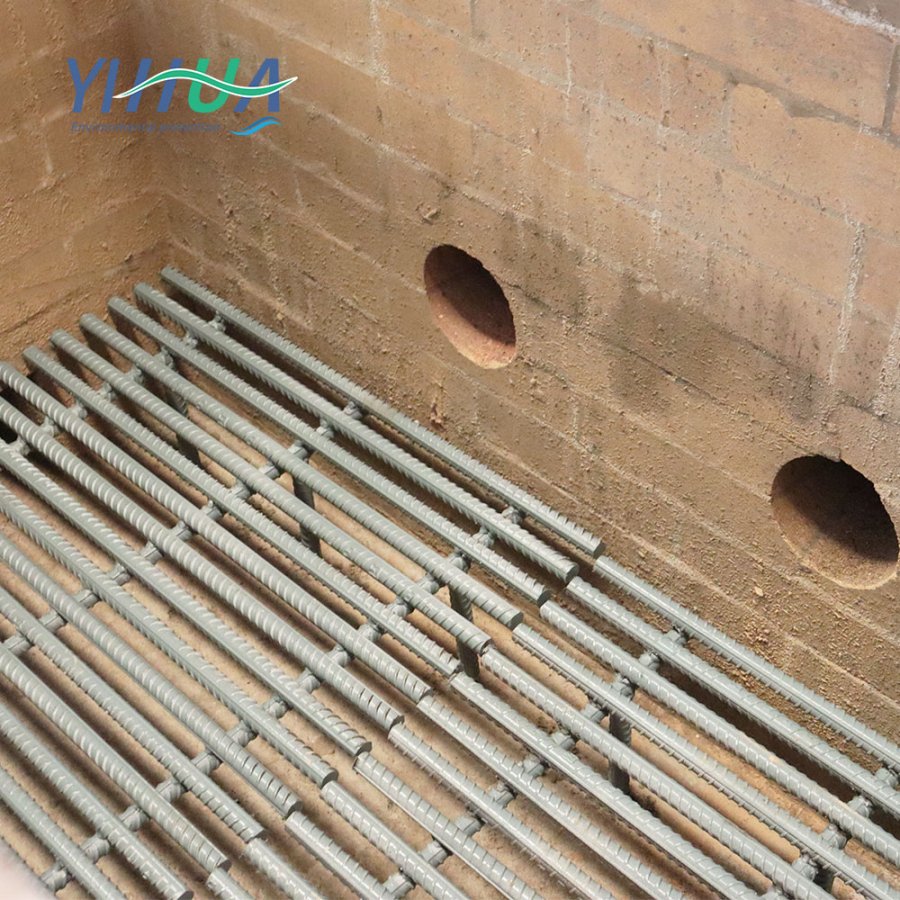

The combustion chamber is lined with high-alumina refractory castable, combined with a ceramic fiber insulation layer. This lining structure provides high-temperature resistance, reduces heat loss, and helps maintain efficient thermal performance.

Under the specified operating conditions and with the appropriate insulation configuration, the external surface temperature of the furnace body can be maintained below 60°C. Actual surface temperatures depend on operating conditions, ambient temperature, insulation design, and measurement location.

7. Fully Customizable Design

The Top Loading Incinerator can be customized to suit different applications and project requirements, including:

Chamber dimensions: Customized according to waste volume, waste size, and available installation space.

Burner quantity and configuration: Selected according to the required heating capacity and operating conditions.

Construction materials: Configured according to temperature requirements, waste characteristics, and the intended service environment.

Fuel system: Diesel or LPG options, subject to the selected configuration.

Waste handling and auxiliary equipment: Adapted to site logistics, loading methods, and project specifications.

8. Multi-Purpose Waste Treatment

One properly configured unit can be used to treat different waste streams alternately, such as municipal solid waste, industrial waste, agricultural plastic film, and animal carcasses. Suitability depends on the waste composition, moisture content, operating procedures, and the required emissions and residue management measures.

The Top Loading Incinerator is suitable for various industries and waste management environments.

Agricultural Farms and Livestock Facilities

Designed for farms and livestock operations that need to manage animal carcasses and other suitable agricultural waste. The top-loading structure can simplify the handling of heavy or bulky materials.

Industrial Parks and Manufacturing Facilities

Suitable for selected industrial solid waste generated during manufacturing and daily operations. Customized chamber dimensions and burner configurations can be specified according to the waste characteristics and required treatment capacity.

Municipal and Commercial Waste Management

Can be configured to process suitable municipal solid waste and general waste from commercial facilities, subject to waste acceptance requirements and local environmental regulations.

Agricultural Waste Treatment

The system can be adapted for agricultural residues and suitable agricultural plastic film. Waste composition, combustion characteristics, and exhaust gas treatment requirements should be evaluated before selecting the final configuration.

Animal Carcass Disposal

The dual-chamber combustion design and customizable loading space make this equipment suitable for animal carcass incineration applications, including farms and livestock-related facilities. Operating parameters should be selected according to carcass size, moisture content, required treatment standards, and applicable regulations.

Bulky and Heavy Waste Handling

The large top-loading opening is especially useful for waste that is difficult to feed through smaller loading doors. Forklift-assisted loading can help reduce manual handling and streamline waste transfer.

The Top Loading Incinerator is a practical and adaptable solution for facilities that require convenient loading and flexible treatment of bulky, heavy, or mixed waste. Its top-opening design, forklift-assisted feeding capability, dual-chamber combustion system, Riello burners, and diesel or LPG fuel options make it suitable for a variety of industrial, agricultural, and waste management applications.

With customizable dimensions, burner configurations, and construction materials, this equipment can be tailored to different waste treatment requirements, helping businesses improve waste handling efficiency and establish a solution suited to their operating environment.

For the best configuration, provide your waste type, estimated daily capacity, fuel preference, and installation requirements when requesting a quotation.
