Produced water is the largest volume byproduct of oil and gas production worldwide. In offshore environments, including fixed platforms, floating production vessels, and subsea facilities, treating this wastewater presents challenges that onshore projects rarely encounter.

Offshore treatment systems must operate under strict limitations, including:

• Limited deck space

• Restricted weight capacity

• High maintenance costs

• Strict oil in water discharge requirements

Therefore, offshore engineers must select technologies that provide high separation efficiency, compact design, low maintenance requirements, and reliable performance under changing reservoir conditions.

This article compares four key treatment technologies and explains their roles in modern offshore produced water treatment systems.

Technology 1: CPI Separator — Primary Oil Separation Solution

The CPI Separator Corrugated Plate Interceptor is the foundation of many offshore produced water treatment systems.

Its corrugated plate coalescence design enables the removal of dispersed oil droplets down to approximately 60 microns, compared with the 150 micron limitation of conventional gravity separators.

Key advantages include:

• Compact footprint requiring only 10 to 20 percent of the space of an equivalent API separator

• No rotating equipment inside the process stream

• Low maintenance requirements

• High reliability in offshore environments

A well designed offshore CPI system can reduce oil concentration from several thousand milligrams per liter at inlet to approximately 100 to 300 milligrams per liter at outlet, creating a stable feed condition for downstream polishing.

However, CPI systems cannot effectively remove:

• Fine emulsified oil droplets below 60 microns

• Dissolved hydrocarbons

Additional treatment is therefore required for direct offshore discharge applications.

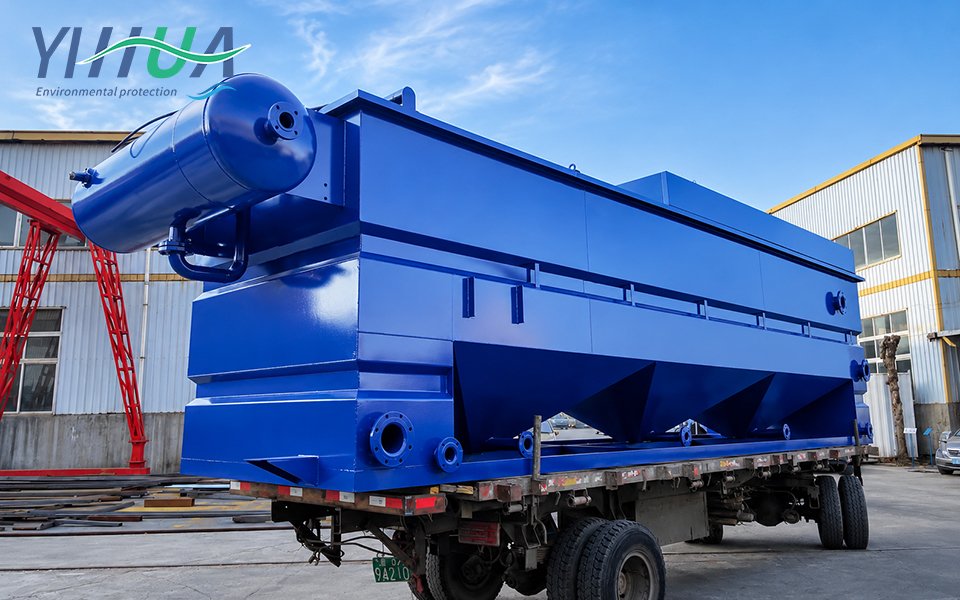

Technology 2: DAF System — Secondary Polishing for Discharge Compliance

The DAF System Dissolved Air Flotation is the most commonly used secondary polishing technology for offshore produced water treatment.

DAF works by generating micro bubbles that attach to remaining oil droplets and suspended solids, lifting them to the surface for removal through a skimming system.

With optimized chemical dosing using coagulants and flocculants, DAF systems can achieve:

• Oil concentration below 30 milligrams per liter for offshore discharge compliance

• Lower levels below 15 milligrams per liter in optimized designs

Offshore DAF systems are specially designed with:

• Motion resistant skimming systems

• Internal flow control structures

• Stable operation under vessel movement conditions

The main trade-off is higher energy consumption and greater mechanical complexity compared with CPI systems due to recycle pumps, air saturation systems, and chemical dosing equipment.

Technology 3: Lamella Clarifier — Solids Management for High Sand Produced Water

Produced water from mature reservoirs and sandstone formations often contains significant amounts of:

• Formation sand

• Scale particles

• Corrosion products

In these applications, the Lamella Clarifier Inclined Plate Clarifier provides effective solids separation.

Its inclined plate structure creates a large settling area within a compact vessel, offering:

• Low energy consumption

• Minimal maintenance requirements

• High solids removal efficiency

In offshore applications, Lamella Clarifiers are commonly used:

• Upstream of CPI systems to reduce abrasive solids loading

• Alongside DAF systems to manage solids rich streams

It is important to understand that the Lamella Clarifier is primarily a solids separation technology, not an oil removal system.

Its role is focused on removing dense settleable particles.

Technology 4: MBBR System — Biological Polishing for Dissolved Organics

For offshore projects requiring advanced wastewater treatment, the MBBR System Moving Bed Biofilm Reactor provides biological polishing of dissolved hydrocarbons and organic compounds.

MBBR technology uses specialized biofilm carriers that support microbial growth and maintain stable treatment performance under:

• Variable organic loading

• Short term toxic shocks

• Changing produced water characteristics

However, MBBR requires effective upstream treatment.

The influent oil concentration should typically be reduced below 20 milligrams per liter, making CPI and DAF treatment essential before biological polishing.

Because MBBR produces biological solids, downstream clarification using a Lamella Clarifier or polishing DAF system is also required before final discharge.

Selecting the Right Offshore Treatment Configuration

Different offshore conditions require different treatment strategies.

For projects with moderate discharge requirements and low sand production:

CPI Separator + DAF System

provides an efficient two stage treatment solution.

For projects with:

• High sand production

• Strict environmental discharge requirements

• Sensitive marine locations

a complete treatment train may include:

CPI Separator + DAF System + Lamella Clarifier + MBBR System

This integrated approach provides:

• Bulk oil removal

• Fine oil polishing

• Solids management

• Dissolved organic reduction

Conclusion

Offshore produced water treatment is a complete systems engineering challenge rather than a single equipment selection decision.

The CPI Separator provides reliable primary oil removal with minimal footprint and maintenance.

The DAF System delivers high efficiency polishing to meet discharge regulations.

The Lamella Clarifier manages heavy solids in high sand applications.

The MBBR System provides advanced biological treatment where dissolved organic reduction is required.

Together, these four technologies create a flexible and comprehensive treatment solution for the full range of offshore oil and gas produced water challenges.
