What Is a Lamella Clarifier and When Should You Use It Instead of a Round Settling Tank?

1. What Is a Lamella Clarifier?

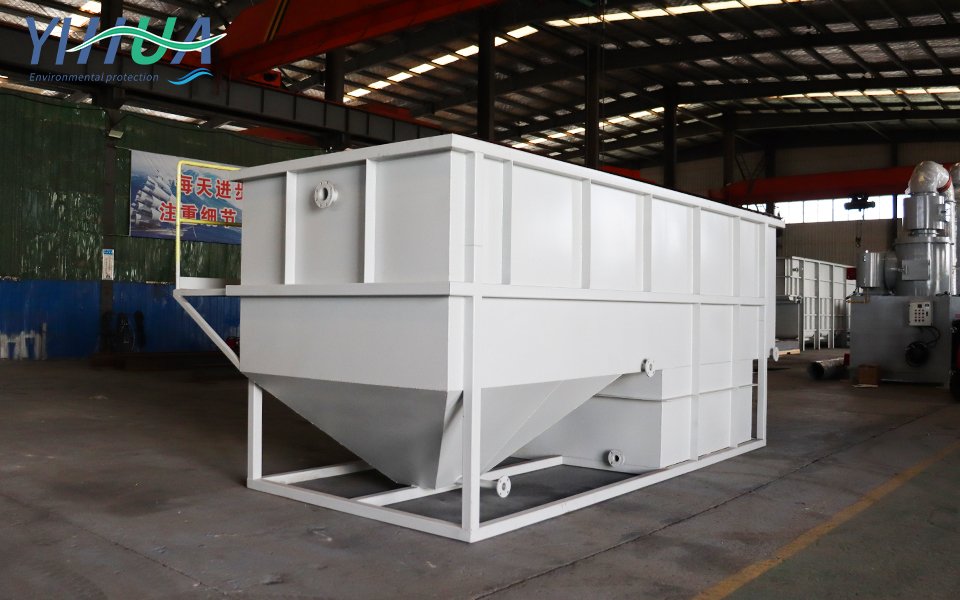

A Lamella Clarifier, also known as an inclined plate clarifier or tube settler, is a gravity separation system that uses multiple closely spaced inclined plates or tubes installed inside a compact vessel. The plates are typically arranged at an angle between 45 and 60 degrees.

As wastewater flows upward through the plate channels, suspended solids settle onto the plate surfaces rather than traveling the full depth of a conventional tank. Once deposited, the solids slide downward under gravity into a sludge collection hopper, while clarified water flows upward and exits through an overflow weir.

The key advantage of this design is the dramatic increase in effective settling area. A compact Lamella unit can provide up to ten times the settling capacity of a conventional tank occupying the same footprint.

2. How a Conventional Round Settling Tank Works

A conventional round settling tank, also known as a circular clarifier, operates using simple gravity sedimentation.

Wastewater enters a central feed well, flows radially outward, and suspended solids settle to the bottom as water moves toward the peripheral overflow weir.

A mechanical scraper system continuously moves settled sludge toward a central hopper for removal.

While this design is proven and widely used, its capacity is directly linked to tank diameter. Increasing throughput requires larger tanks, which increases land use and civil construction cost.

3. Core Engineering Difference: Surface Area vs Volume

The fundamental difference between the two systems is how they achieve settling area.

In a round settling tank:

• Effective settling area equals the tank footprint

• Capacity increases only by increasing tank diameter

• Large civil structures are required for scaling

In a Lamella Clarifier:

• Settling occurs on multiple inclined plate surfaces

• Effective settling area is multiplied within a compact volume

• High capacity is achieved without increasing footprint

This makes the Lamella Clarifier significantly more space efficient in most industrial applications.

4. When You Should Choose a Lamella Clarifier

When Land Area Is Limited

The Lamella Clarifier is ideal for facilities with restricted space such as urban plants, retrofit installations, or compact industrial sites.

It delivers high treatment capacity in a fraction of the footprint required by conventional tanks.

When Project Timeline Is Short

Round settling tanks require extensive civil works including excavation, concrete construction, and curing time.

A Lamella Clarifier is typically prefabricated and can be installed and commissioned quickly, making it suitable for projects with tight deadlines or regulatory urgency.

When Treating Dense Inorganic Solids

Lamella Clarifiers perform best with heavy, settleable solids, such as:

• Metal hydroxide precipitates

• Mining and mineral particles

• Coagulated turbidity from water treatment

• Construction runoff solids

These particles settle efficiently along inclined plate surfaces and produce concentrated sludge.

When Civil Cost Must Be Minimized

Compared to large concrete tanks, Lamella systems require:

• Minimal excavation

• Simple foundation or skid mounting

• No large rotating mechanical bridge

This significantly reduces overall capital construction cost.

When Upgrading Existing Plants

Lamella Clarifiers are widely used in retrofit projects where additional treatment capacity must be added without expanding plant footprint.

They can be integrated upstream or downstream in existing treatment trains to increase solids handling capacity.

5. When a Round Settling Tank Is Still Preferred

Despite its limitations, the round settling tank remains advantageous in some cases.

For very large flow applications at greenfield sites with available land, round clarifiers can be more cost effective at scale, particularly above high daily flow ranges.

They are also suitable for:

• Large biological treatment systems

• Light biological sludge separation

• Applications where very gentle hydraulic conditions are required

In some biological systems such as MBBR System Moving Bed Biofilm Reactor plants, downstream clarification may still use conventional tanks depending on effluent characteristics.

Conclusion

The Lamella Clarifier is not simply a compact version of a round settling tank. It represents a fundamentally different engineering approach based on enhanced settling surface area within a compact volume.

It is the preferred solution for:

• Space constrained installations

• Rapid deployment projects

• Dense inorganic solid separation

• Industrial plant upgrades

The round settling tank remains relevant for large scale, land available municipal and biological systems, but for most industrial wastewater applications, the Lamella Clarifier provides a more efficient and cost effective engineering solution.
