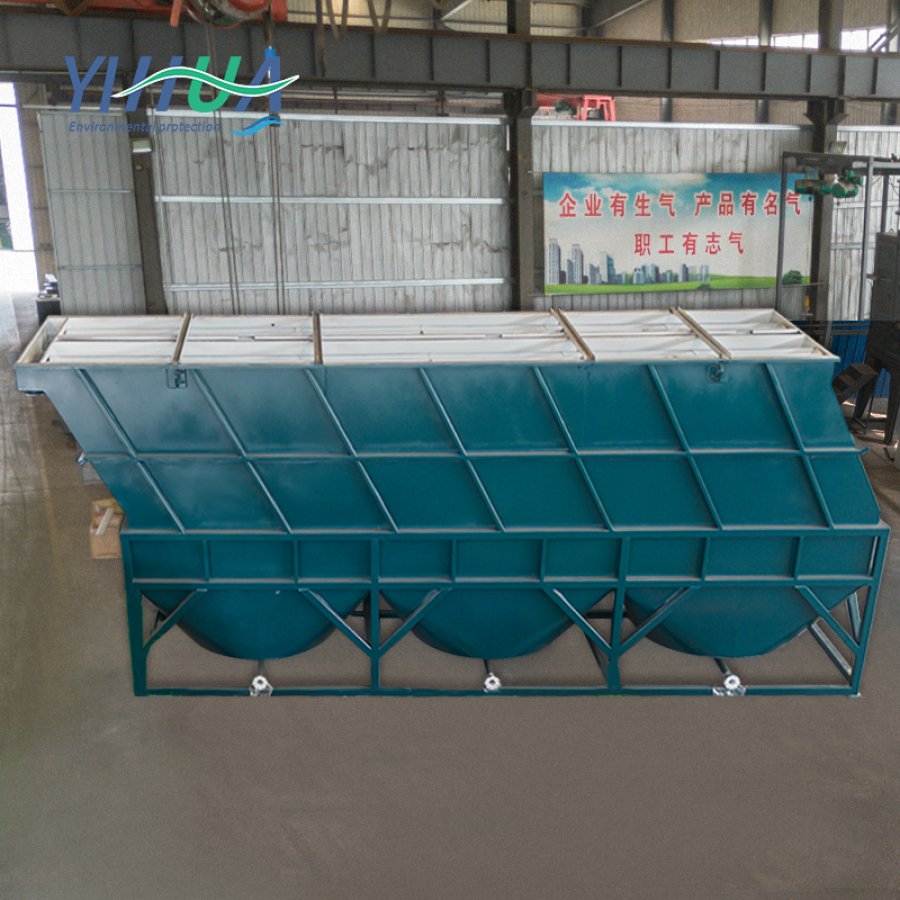

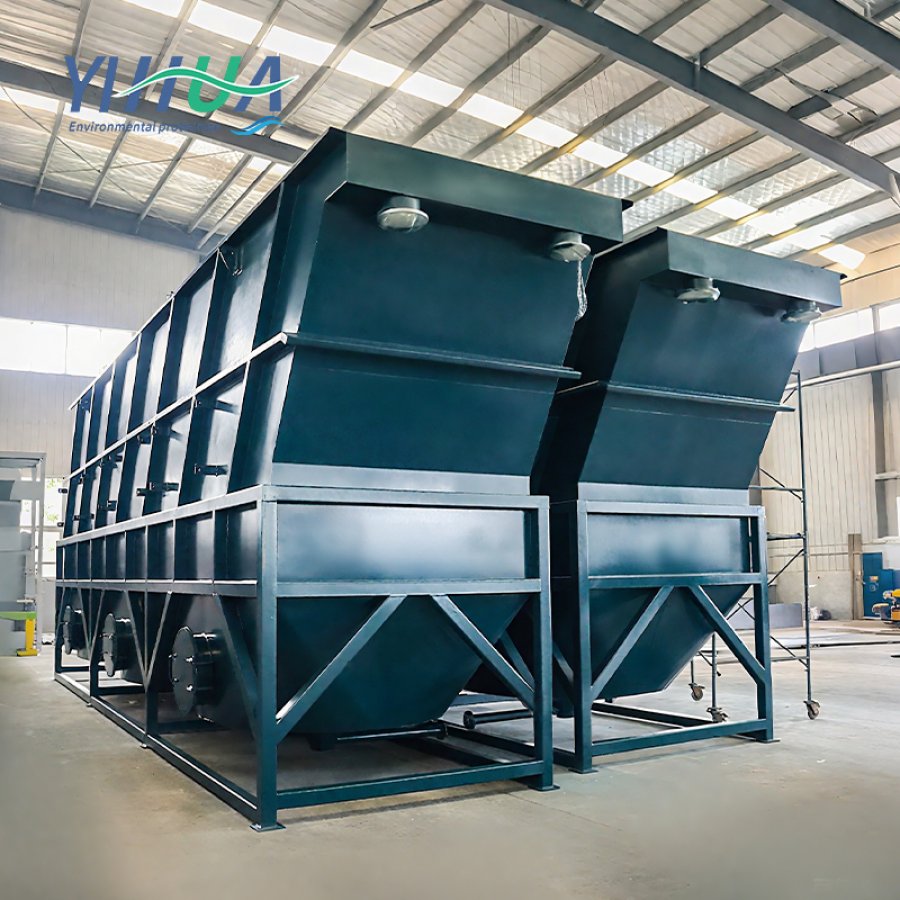

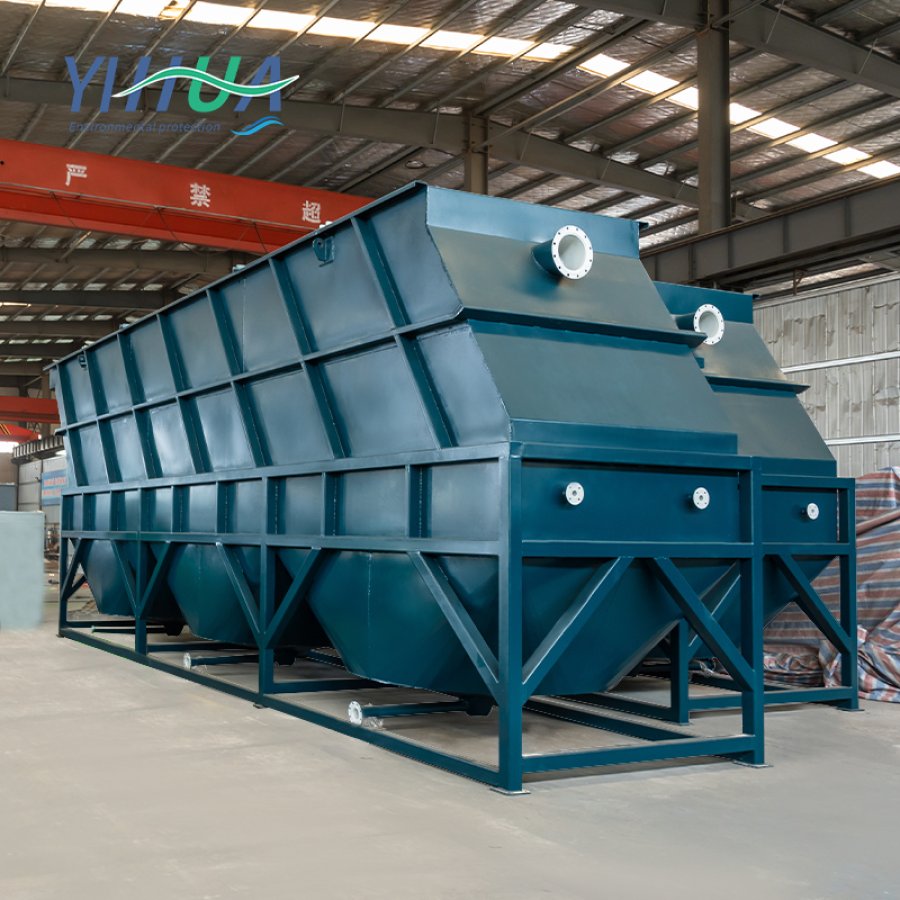

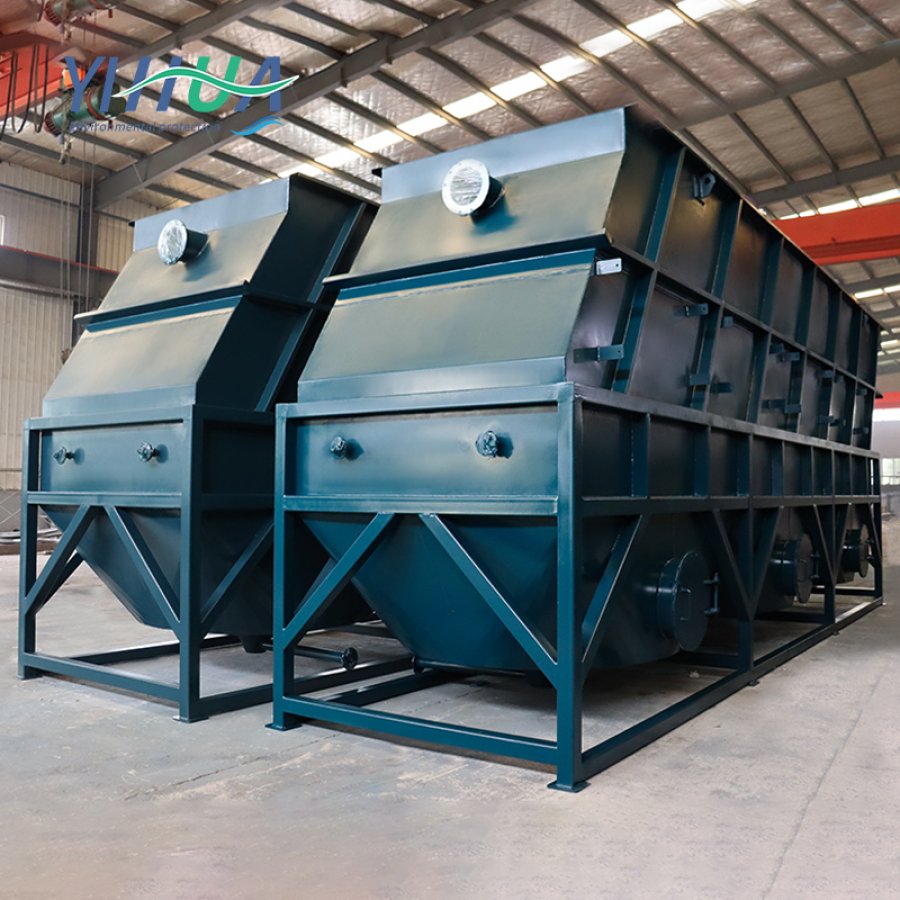

Lamella Separator

Our large-scale Lamella Separator is a high-efficiency solid-liquid separation device specifically designed for large-scale industrial wastewater treatment and municipal sewage treatment. Based on the shallow-pool sedimentation theory, this equipment utilizes densely arranged inclined plate modules to achieve 3-5 times the treatment capacity of traditional Lamella Separators within a limited footprint. The modular design allows for customized configuration based on customer site conditions, treatment volume, and water quality characteristics, making it suitable for new projects and upgrades to existing facilities.

Core Advantages

1. Powerful Processing Capacity

Single unit can process 100-500 m³/day (multiple units can be connected in parallel for expansion)

Surface load design range: 3-8 m³/(m²·h), far exceeding traditional sedimentation tanks

Suspended solids removal rate can reach over 95%

2. Significantly Reduced Footprint

Compared to traditional horizontal flow sedimentation tanks, the footprint is reduced by 60%-70%

Suitable for factories and municipal projects with limited land

3. Stable and Reliable Operation

The inclined plates adopt a 60° tilt angle design, allowing sludge to slide off automatically, with no moving parts.

Stable effluent quality and strong resistance to shock loads.

Optional automatic sludge removal system and online monitoring instruments are available.

4. Low Maintenance Costs

No mechanical sludge scraping equipment in the sedimentation zone, reducing potential points of failure.

The inclined plate module can be individually removed for cleaning, making maintenance convenient.

Energy consumption is limited to the inlet pump and sludge pump, resulting in low operating costs.

5. Fully Customizable Design

Inclined Plate Material: PVC, Polypropylene, Stainless Steel, FRP optional

Plate Spacing: 25mm-80mm, customized according to suspended solids characteristics

Tank Structure: Carbon steel corrosion resistant, stainless steel, concrete structure optional

Integrated Functions: Can be equipped with built-in flocculation reaction zone and sludge thickening zone

Applicable Scenarios

Municipal Wastewater Treatment Plants: Primary sedimentation tank renovation, advanced treatment upgrading, secondary sedimentation tank capacity expansion

Mining and Mineral Processing: Tailings wastewater treatment, washing water reuse

Iron and Steel Industry: Steel rolling wastewater, dust removal wastewater, circulating cooling water treatment

Petrochemical Industry: Oily wastewater pretreatment, catalyst recovery

Food and Beverage Industry: Starch wastewater, slaughterhouse wastewater, beer wastewater treatment

Paper Industry: White water recovery, pulp thickening

Power Industry: Desulfurization wastewater, ash flushing water treatment

Customized Services

We provide a full-process service from process design, equipment manufacturing, installation and commissioning to operation training. Our technical team can provide customized design solutions based on the water quality report and site conditions provided by our clients, ensuring perfect matching of equipment with upstream and downstream processes.

Get a Quote

Please contact us directly and provide your project requirements. We will provide you with a detailed technical solution and quotation.
