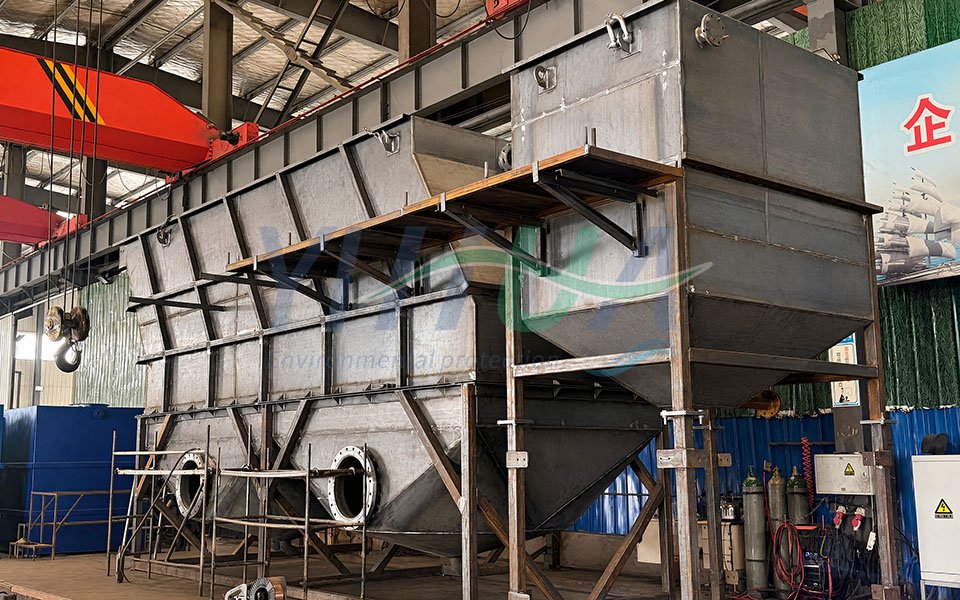

How Do You Size an Inclined Plate Clarifier for Industrial Wastewater?

Sizing an Inclined Plate Clarifier requires more than dividing daily flow by tank volume. The design must match peak hydraulic flow, particle settling behavior, suspended solids load, chemical conditioning, sludge production, and required effluent quality. If any of these factors are ignored, the unit may experience solids carryover, blocked plate channels, or excessive sludge accumulation.

Start With Representative Wastewater Data

Reliable sizing begins with flow and water quality data from actual operating conditions. Engineers should define average flow, peak hourly flow, batch discharge volume, TSS concentration, particle density, temperature, pH, oil content, and expected effluent quality.

Peak flow is especially important. An Inclined Plate Clarifier sized only for average daily flow may become hydraulically overloaded during production discharge or cleaning cycles. Flow equalization can reduce this peak and allow a smaller, more stable clarification system.

Settling tests should be completed using representative wastewater. When fine particles do not settle effectively, jar testing helps determine the coagulant, flocculant, dose, and mixing conditions needed to form stronger flocs.

Calculate the Required Settling Area

The primary hydraulic calculation uses the design flow divided by the selected surface loading rate. This produces the required effective settling area.

The loading rate should be selected from settling test results, treatment targets, solids characteristics, and verified equipment design experience. Dense mineral particles may tolerate a higher rate than light or fragile chemical flocs. Using an optimistic rate without testing can reduce the safety margin and increase solids carryover.

Inclined plates provide additional settling area through their horizontal projected surfaces. The required plate quantity depends on plate length, width, angle, spacing, and usable area. Blocked edges, structural supports, and inactive zones should not be counted as effective area.

Check Plate Spacing and Hydraulic Distribution

Narrow plate spacing increases settling area within a compact tank, but it also raises the risk of blockage when wastewater contains fibrous solids, sticky sludge, oil, or large flocs. Wider channels are often more reliable for difficult industrial wastewater.

The inlet zone must distribute water evenly across the complete plate pack. Short circuiting can overload one section while other channels remain underused. Outlet launders should also collect clarified water uniformly to prevent localized upward velocity.

Size for Solids and Sludge Production

Hydraulic area alone does not determine clarifier capacity. Engineers must calculate the incoming solids mass from flow and TSS concentration, then estimate the mass captured each day. Chemical addition may increase sludge production and must be included.

The sludge hopper should store solids between discharge cycles without allowing the sludge blanket to reach the plate pack. Hopper angle, sludge concentration, withdrawal frequency, valve size, and pump selection must support reliable removal. Abrasive or rapidly settling solids may require more frequent discharge.

Include Operating and Safety Factors

Final sizing should consider seasonal temperature changes, production expansion, chemical variability, maintenance access, plate cleaning, and temporary peak loads. The design should also verify material compatibility with acids, alkalis, salts, hydrocarbons, and operating temperature.

Conclusion

An Inclined Plate Clarifier should be sized from peak flow, tested settling performance, effective projected plate area, solids mass loading, and sludge storage requirements. The most reliable design combines hydraulic calculations with representative settling and jar tests. This approach prevents undersizing and ensures that the plate pack, hopper, inlet, and outlet operate as one balanced clarification system.
