Package sewage treatment plant

The core process of our MBR-based plant seamlessly combines biological degradation with membrane filtration. Microorganisms within the aeration tank break down organic pollutants. Instead of a secondary clarifier, a dedicated membrane module is submerged directly in the mixed liquor. These microfiltration or ultrafiltration membranes act as an absolute barrier, separating treated water from activated sludge and solids. The resulting effluent is clear, disinfected, and low in nutrients, suitable for direct discharge or non-potable reuse. Our MBBR variants utilize specially designed plastic carriers that provide a surface for biofilm growth, offering a robust and stable biological process within a compact tank.

1. Exceptional Effluent Quality. The MBR membrane provides a physical barrier, producing effluent of very high clarity with extremely low turbidity, significantly reduced pathogens, and consistently meeting strict reuse or discharge standards.

2. Remarkably Compact Footprint. By eliminating the need for secondary clarifiers and tertiary filters, the system requires up to 50% less space than conventional activated sludge plants of equivalent capacity.

3. Fully Automated and Simple Operation. The plant is controlled by an intelligent PLC system, allowing for continuous monitoring, automated backwash cycles, and remote management, minimizing operator intervention.

4. High Process Stability and Load Resilience. The MBR maintains a high concentration of mixed liquor suspended solids, making the biological process highly resistant to shock loads and fluctuations in inflow.

5. Direct Reuse Potential. The superior effluent quality allows it to be directly used for irrigation, toilet flushing, or industrial cooling without requiring additional advanced polishing steps.

6. Modular and Scalable Design. The packaged modular concept allows for straightforward capacity expansion by adding additional tank or membrane modules as demand increases.

1. Decentralized Community and Residential Treatment. Perfect for small communities, housing estates, residential compounds, hotels, and resorts not connected to a central sewer network.

2. Industrial Camp and Remote Site Facilities. Provides reliable sanitation for workforce camps at mining, oil and gas, or construction sites in isolated locations.

3. Commercial and Institutional Use. An ideal solution for schools, hospitals, shopping centers, and office buildings requiring on-site treatment and water recycling.

4. Tourism and Leisure Facilities. Effectively treats wastewater from marinas, golf courses, campgrounds, and eco-lodges, often in environmentally sensitive areas.

5. Industrial Wastewater Pretreatment. Can be applied to treat biodegradable industrial wastewater streams prior to discharge to a public sewer or further processing.

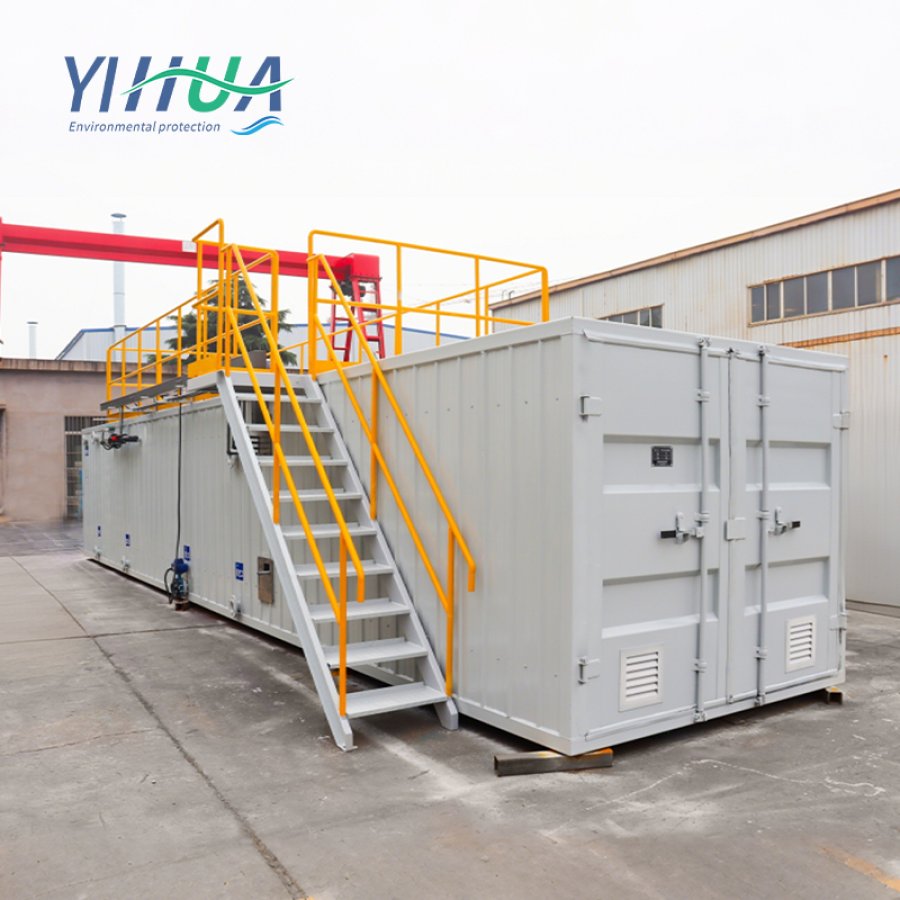

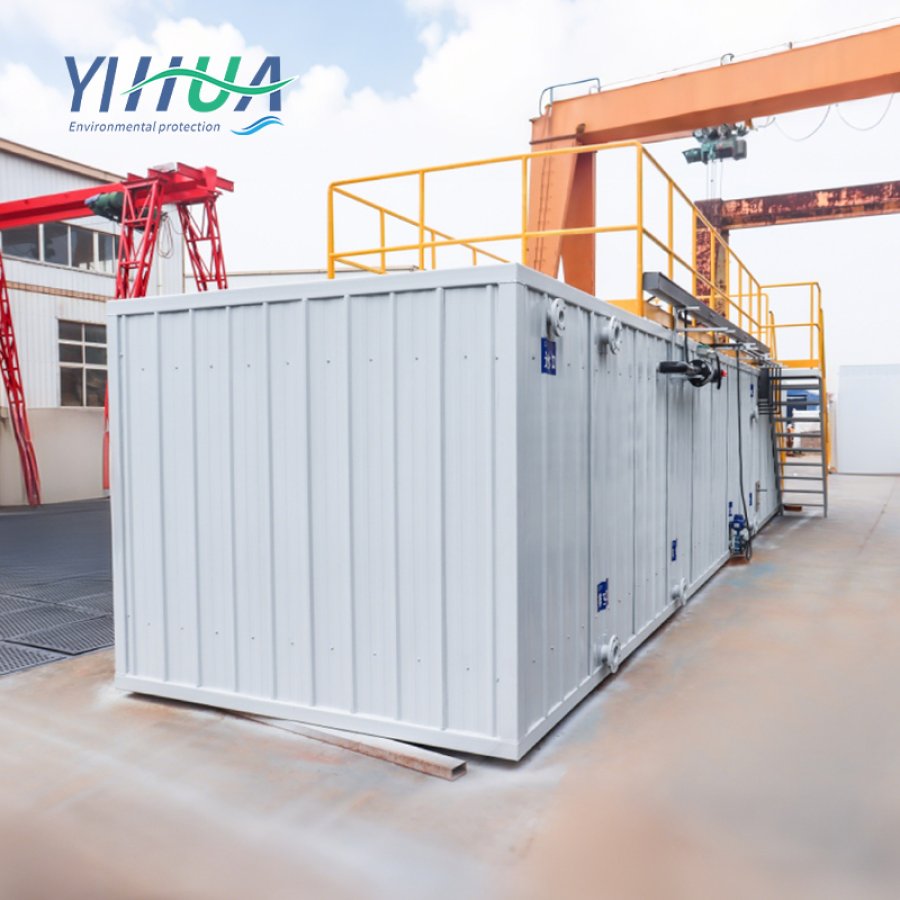

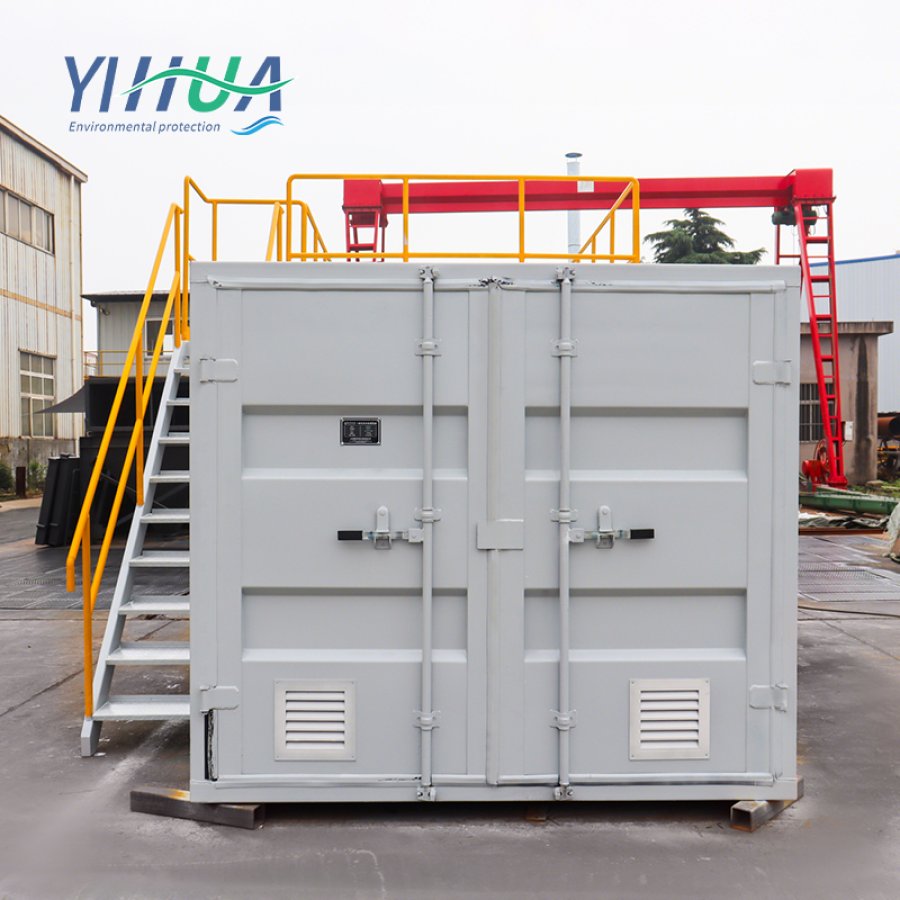

Our Package Sewage Treatment Plants are delivered as pre-assembled skids or containerized modules, drastically reducing on-site installation time and cost. We offer comprehensive support from initial site assessment and design through to commissioning, operator training, and ongoing maintenance services.

For a dependable, space-saving, and high-performance wastewater treatment solution, consider our advanced Package Plant with MBR technology. Contact us to discuss your project requirements, request a detailed process design, and receive a customized proposal for a turnkey system.
