Lamella Clarifier

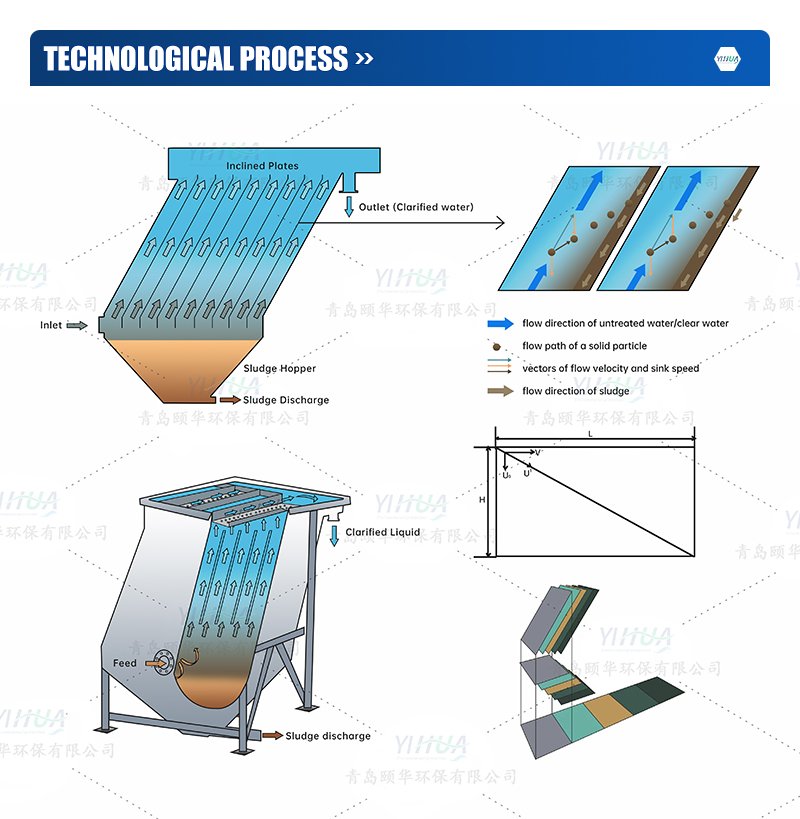

The operational principle is both elegant and efficient. The system features a series of closely spaced, inclined plates (lamella packs) installed within a tank. As the particle-laden feed enters, it flows upward between the plates. Solids settle onto the plate surfaces under gravity, slide down the incline, and collect in a sludge hopper. The clarified liquid continues upward and is collected via effluent launders. This design dramatically increases the effective settling area within a small space.

1. Exceptional Space Efficiency and Compact Design. The inclined plate configuration provides a large effective settling area equivalent to a conventional clarifier many times its size, making it perfect for sites with severe space constraints.

2. Superior Clarification Performance and High Flow Capacity. Ensures consistent production of high-quality, low-turbidity effluent, capable of handling high flow rates with stable performance.

3. Proven Robustness and Low Maintenance. With no moving parts in the settling zone, operational reliability is extremely high, and maintenance requirements are minimal, reducing lifecycle costs.

4. Operational Flexibility and Adaptability. Can be effectively used as a primary clarifier, secondary clarifier, or for specific process separation tasks. Its design is adaptable to various chemical conditioning (coagulation/flocculation) needs.

5. Cost-Effective Installation and Operation. Reduced civil construction costs due to its compact size, combined with low energy consumption, offers a compelling return on investment.

1. Drinking Water and Municipal Wastewater Treatment: Widely used in both raw water clarification and secondary clarification stages in municipal treatment plants.

2. Industrial Process Water and Wastewater Treatment: Essential for industries such as mining and mineral processing, pulp and paper, chemical processing, and steel production for process water recovery and effluent treatment.

3. Stormwater Runoff Management: Effectively treats stormwater by removing sediments, heavy metals, and hydrocarbons before discharge or reuse.

4. Desalination and Sea Water Intake Pretreatment: Serves as a critical pre-filtration step to reduce silt density index (SDI) and protect downstream membranes.

5. Industrial Recycling and Zero Liquid Discharge (ZLD) Systems: Acts as a key solid-separation unit within complex water recycle and brine concentration systems.

As a key professional product in our portfolio, our Lamella Clarifiers are engineered for durability and precision. We offer comprehensive solutions, from standardized packages to fully customized designs, including integrated chemical feed systems and sludge handling options.

For your next project requiring reliable, high-capacity clarification, choose our professional Lamella Clarifier technology. Contact us for an engineering consultation, detailed CAD layouts, and a performance-guaranteed proposal tailored to your specific separation challenge.
