Which System Handles My Plant's Wastewater Better

Industrial facility managers often face a practical question during the equipment procurement phase: How do I match the right physical or biological separation technology to the specific contaminants present in my discharge stream? The answer depends entirely on whether you are dealing with dense mineral particles, sticky oil emulsions, dissolved organic compounds, or a mixture of all three. This article offers a straightforward overview of four distinct pieces of wastewater treatment equipment: the Lamella Clarifier, the Dissolved Air Flotation (DAF) System, the MBBR (Moving Bed Biofilm Reactor), and the CPI (Corrugated Plate Interceptor) Separator. Understanding the specific job each machine performs will help prevent costly mismatches in industrial treatment lines.

Lamella Clarifier – Handling Heavy Grit and Mineral Tailings

The Lamella Clarifier functions as a high-rate sedimentation device intended for wastewater streams carrying significant loads of dense, granular solids. Inside the tank, a series of parallel inclined plates create multiple settling zones, effectively reducing the vertical distance a solid particle must travel before exiting the flow path. This mechanism allows the Lamella Clarifier to achieve clear overflow water while occupying a minimal footprint on the factory floor. This technology is particularly valuable in sectors such as aggregate washing, mining operations, and metal finishing workshops where the primary objective is the rapid removal of sand, silt, and metallic fines before further polishing steps are applied.

Dissolved Air Flotation (DAF) System – Targeting Fats, Fibers, and Emulsified Oils

A Dissolved Air Flotation (DAF) System addresses a different set of challenges. It is specifically deployed when the contaminants are too light or too buoyant to sink by gravity alone. The DAF process relies on the creation of a dense cloud of micro-bubbles generated by saturating a recycle stream with air under pressure. Upon release, these bubbles adhere to suspended matter and oil sheens, lifting them to form a floating sludge blanket that is continuously removed. Industries that benefit most from DAF wastewater treatment include poultry and meat processing plants, cosmetic manufacturing facilities, and vegetable oil refineries. In these contexts, the DAF unit is essential for preventing grease accumulation and reducing the load on downstream biological reactors.

MBBR (Moving Bed Biofilm Reactor) – Managing Soluble Organic Loads and Nutrient Removal

The MBBR (Moving Bed Biofilm Reactor) represents a robust biological solution for treating wastewater containing dissolved organic carbon and nitrogen compounds. Unlike static fixed-film systems, MBBR wastewater treatment employs small, high-density polyethylene carriers that move freely throughout the reactor volume. This constant motion ensures effective contact between the biofilm, which houses the treatment bacteria, and the incoming pollutants. The system is recognized for its capacity to handle fluctuations in flow and concentration—characteristics common in batch-discharge operations like breweries, soft drink bottling plants, and specialty chemical production. The MBBR technology provides reliable secondary treatment without the large settling tanks required by older suspended-growth methods.

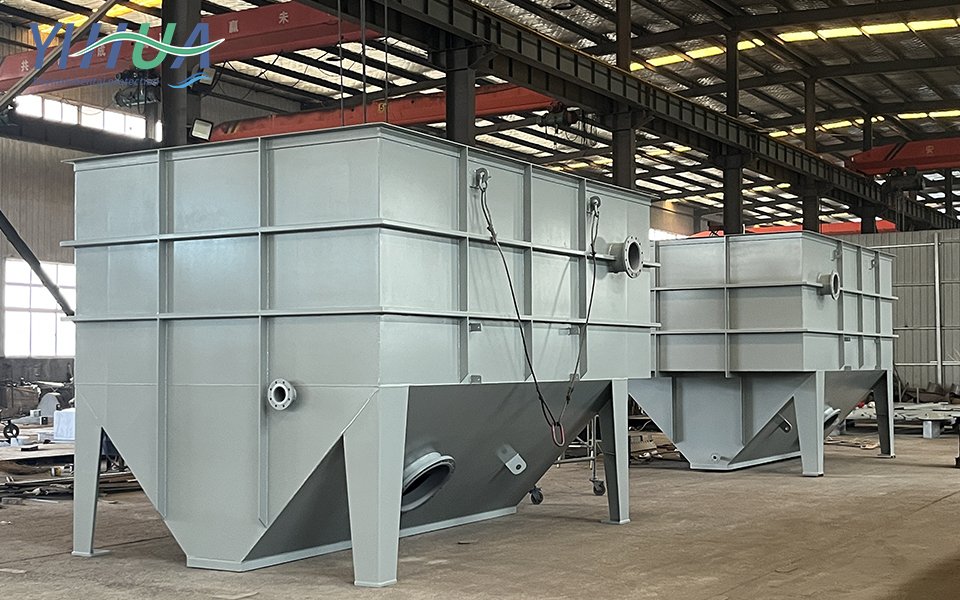

CPI (Corrugated Plate Interceptor) Oil Separator – Primary Defense for Free Hydrocarbon Layers

For operations where large quantities of non-emulsified oil or hydrocarbon liquids enter the waste stream, the CPI (Corrugated Plate Interceptor) offers a rugged first line of defense. The unit operates on the principle of enhanced gravity separation using a structured pack of corrugated plates. As water flows through these narrow, laminar channels, oil droplets rise only a few millimeters before contacting a surface and coalescing into larger globules. This CPI Oil Separator configuration provides high separation efficiency for free oil in a compact assembly. Typical installation sites for a CPI interceptor include truck wash stations, underground fuel storage depots, and industrial stormwater collection points where a sudden spill or chronic oily runoff must be captured before entering public sewers.

Practical Considerations for System Selection

Determining whether to install a Lamella Clarifier, a DAF unit, an MBBR reactor, or a CPI Separator starts with a clear characterization of the waste stream. One must distinguish between particulate matter that settles versus matter that floats, and between substances requiring physical removal versus those needing biological digestion. A frequent and effective industrial layout involves a staged approach: a CPI Oil Water Separator for gross oil removal, followed by equalization, then a DAF System to polish out fine solids and emulsified residue, and finally an MBBR stage to address any remaining soluble BOD or ammonia. Conducting a treatability study with a knowledgeable wastewater treatment equipment provider ensures that the final installed system aligns precisely with both production demands and environmental permit limits.
