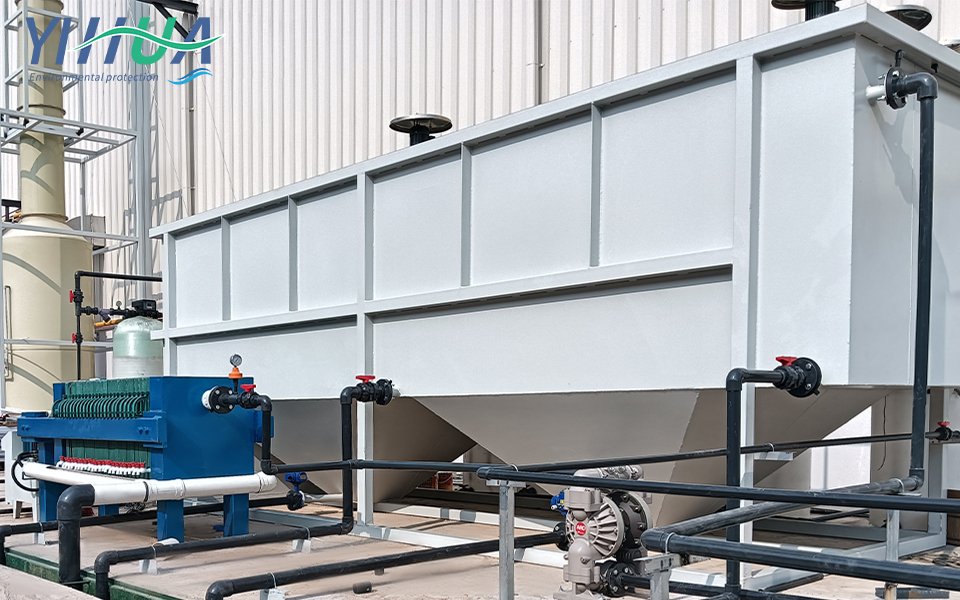

Common Issues and Solutions for Inclined Plate Settlers: Boosting Treatment Efficiency

In wastewater treatment systems, inclined plate (or tube) sedimentation tanks are widely used due to their compact footprint and high sedimentation efficiency. However, during actual operation, these systems may encounter certain typical issues that affect effluent quality and operational stability. This article summarizes several common types of malfunctions in inclined plate sedimentation tanks and their corresponding solutions for the reference of operations and maintenance personnel.

I. Severe Sludge Accumulation on Slant Plate Surfaces

Symptoms: A large amount of sludge adheres to the surfaces of slant plates or tubes, reducing the flow cross-section, decreasing the settling area, and even causing localized blockages.

Cause Analysis: Poor sludge settling performance (e.g., sludge bulking); excessively long sludge removal cycles or incomplete sludge removal; improper design or installation of the inclined plate angle, preventing sludge from sliding off smoothly.

Solutions:

Optimize the upstream biological treatment or coagulation processes to improve sludge settling performance.

Shorten the sludge removal intervals; adopt automatic timed sludge removal or control based on signals from a sludge level sensor.

Check the inclination angle of the inclined plates (typically recommended around 60°); modify or clean the plate surfaces if necessary.

II. Elevated Suspended Solids (SS) in Effluent

Symptoms: The effluent from the sedimentation tank is turbid, and the suspended solids concentration exceeds design standards.

Cause Analysis: Excessive surface load exceeding the design hydraulic load; severe fluctuations in influent flow causing short-circuiting; localized perforations or damage between the inclined plates, resulting in untreated wastewater flowing out before settling; improper design of the collection trough or uneven load distribution on the outlet weir.

Solutions:

Verify the actual influent flow rate; if long-term overload occurs, consider adding additional units or adjusting process parameters.

Install inlet flow stabilizers or distribution devices to reduce flow surges.

Regularly inspect the integrity and sealing of the inclined plates, and replace damaged panels.

Level the outlet weir to ensure uniform effluent flow.

III. Poor Sludge Discharge or Caking in the Sludge Hopper

Symptoms: Sludge accumulates for too long in the bottom sludge hopper, preventing smooth discharge and even leading to caking or blockages.

Cause Analysis: The sludge discharge pipe diameter is too small or the slope is insufficient; the sludge has a high solids content and poor flowability; no effective sludge scraping or air lift devices are installed.

Solutions:

Increase the diameter of the sludge discharge pipe appropriately and maintain a sufficient slope.

For sludge with high sand content, install flushing pipes or air agitation devices at the sludge hopper.

Periodically loosen sludge in hard-to-reach corners of the hopper manually or mechanically to prevent long-term accumulation.

IV. Aging or Deformation of Slant Plates

Symptoms: Plastic or fiberglass slant plates exhibit deformation, collapse, or cracking, affecting separation efficiency.

Causes: Long-term exposure to ultraviolet (UV) radiation (outdoors without cover); excessively high water temperatures or water containing corrosive components such as organic solvents; insufficient structural support strength.

Solutions:

Outdoor equipment should be fitted with a sunshade or constructed using more weather-resistant materials.

For corrosive water, select stainless steel or PP-modified corrosion-resistant inclined plates.

Regularly inspect the support structure and promptly reinforce or replace aged components.

V. Uneven Inflow and Water Distribution

Symptoms: Rapid water flow on one side of the tank and almost no flow on the other, creating dead zones or short-circuiting.

Cause Analysis: Improper design of the inlet channel or perforated distribution pipes; clogged or unevenly worn perforations.

Solutions:

Inspect and clean the distribution holes to ensure their size and spacing comply with hydraulic calculations.

Install deflector plates or baffles to improve flow distribution.

Conclusion

As highly efficient solid-liquid separation equipment, inclined plate sedimentation tanks can operate stably over the long term as long as scientific preventive and maintenance measures are taken to address common issues. It is recommended that operating units establish a system for regular inspections, cleaning, sludge removal, and condition checks of the inclined plates, and maintain operational records to facilitate timely problem detection and optimization adjustments. In the event of complex operating conditions, consult professional equipment manufacturers or design institutes for targeted modifications.
